Hydraulic Seals

Chesterton Customseal’s broad range of high-performance hydraulic and pneumatic seals is made from exclusive polymer materials for use in a wide range of demanding industrial sealing applications.

Our technical expertise, combined with our comprehensive range of trusted quality products manufactured in various profiles, sizes, designs and premium materials, enables us to provide custom seals and polymer sealing solutions to meet your specific needs.

Let us help you select the right materials for your application:

Fluoroplastics
Elastomers
Engineered plastic

Choose from advanced materials and innovative designs with the capability of same-day shipping and high production capacity.

Our hydraulic and pneumatic seals on-demand service covers:

Application-specific solutions
Design to meet the performance requirement
Engineer to engineer collaboration

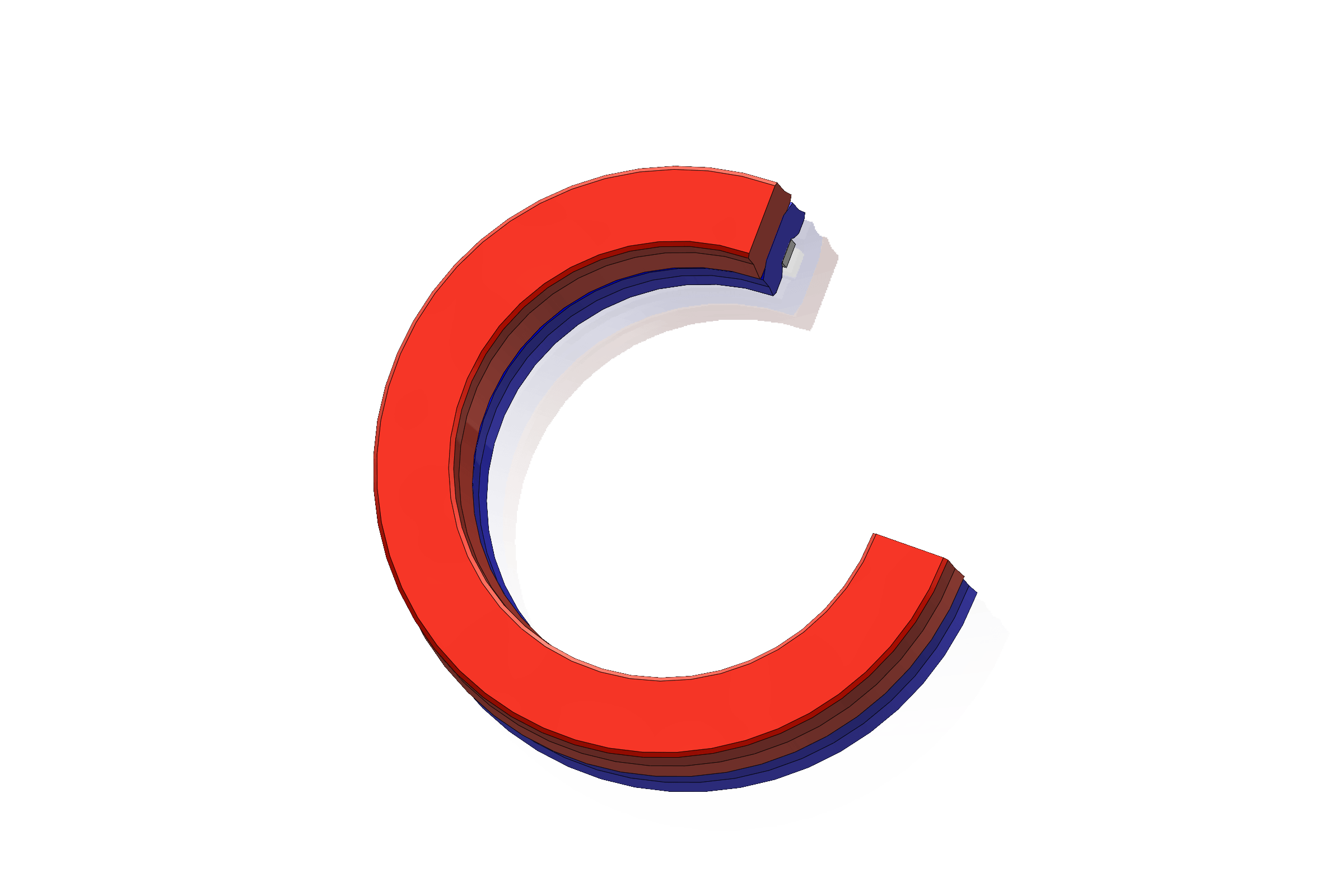

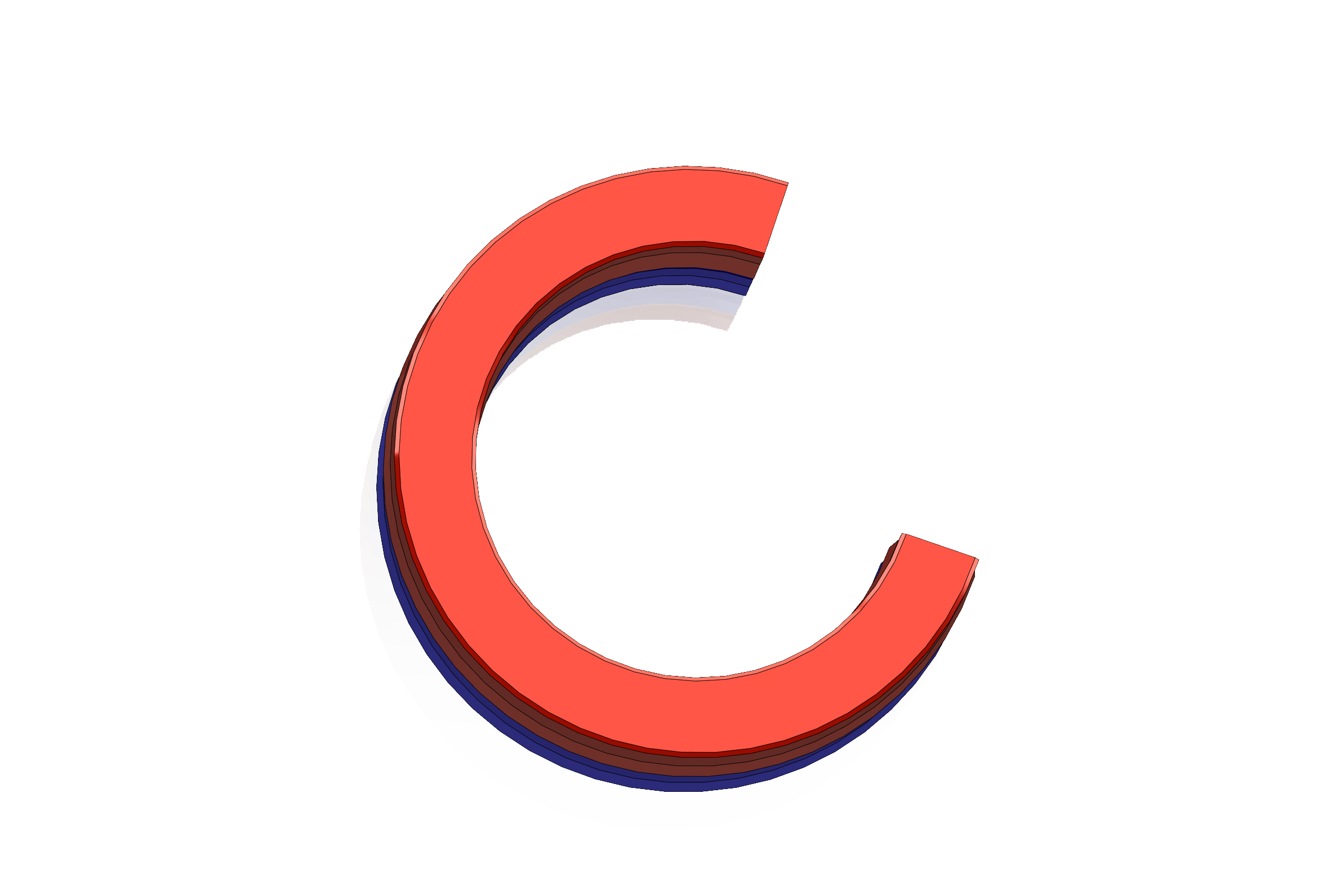

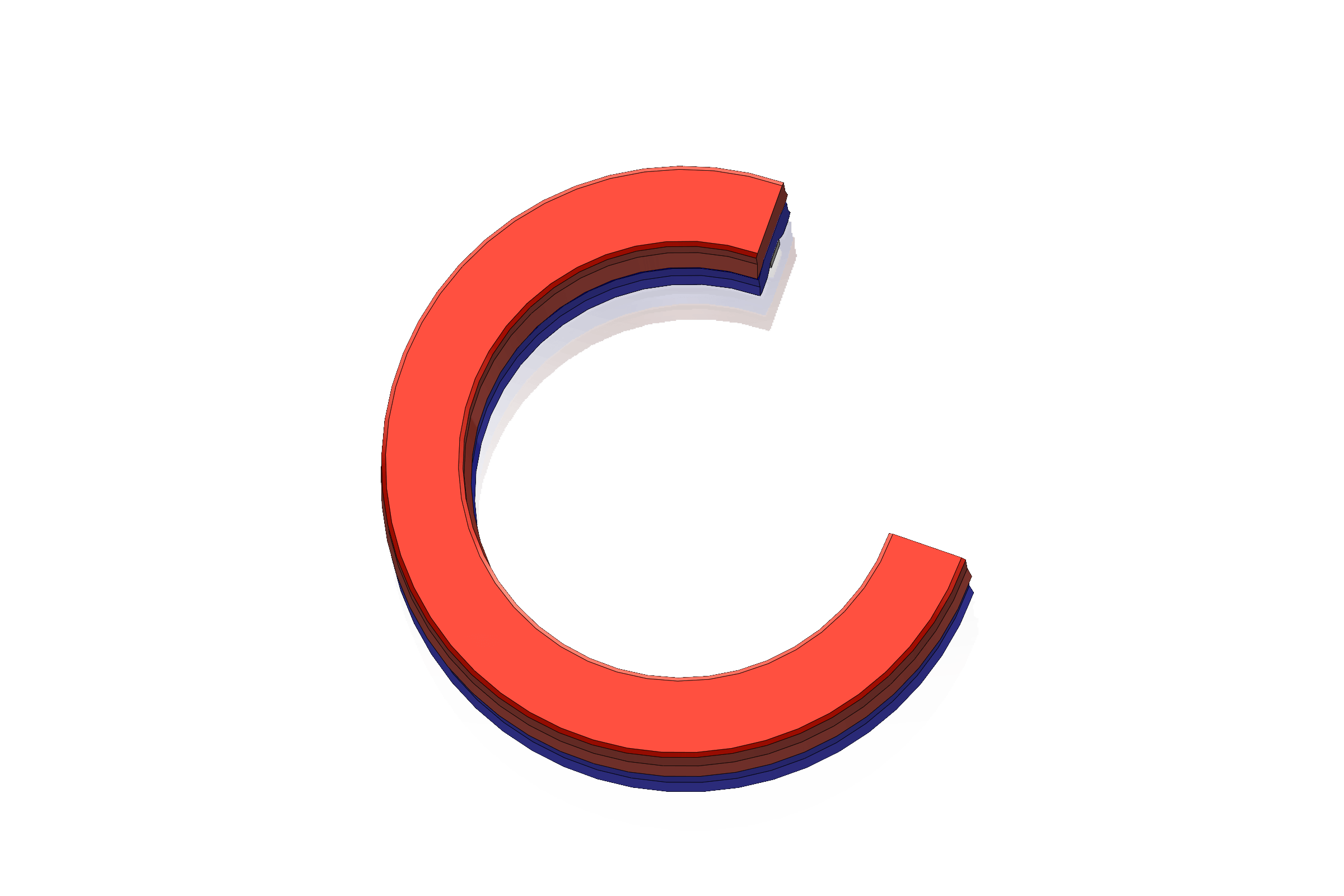

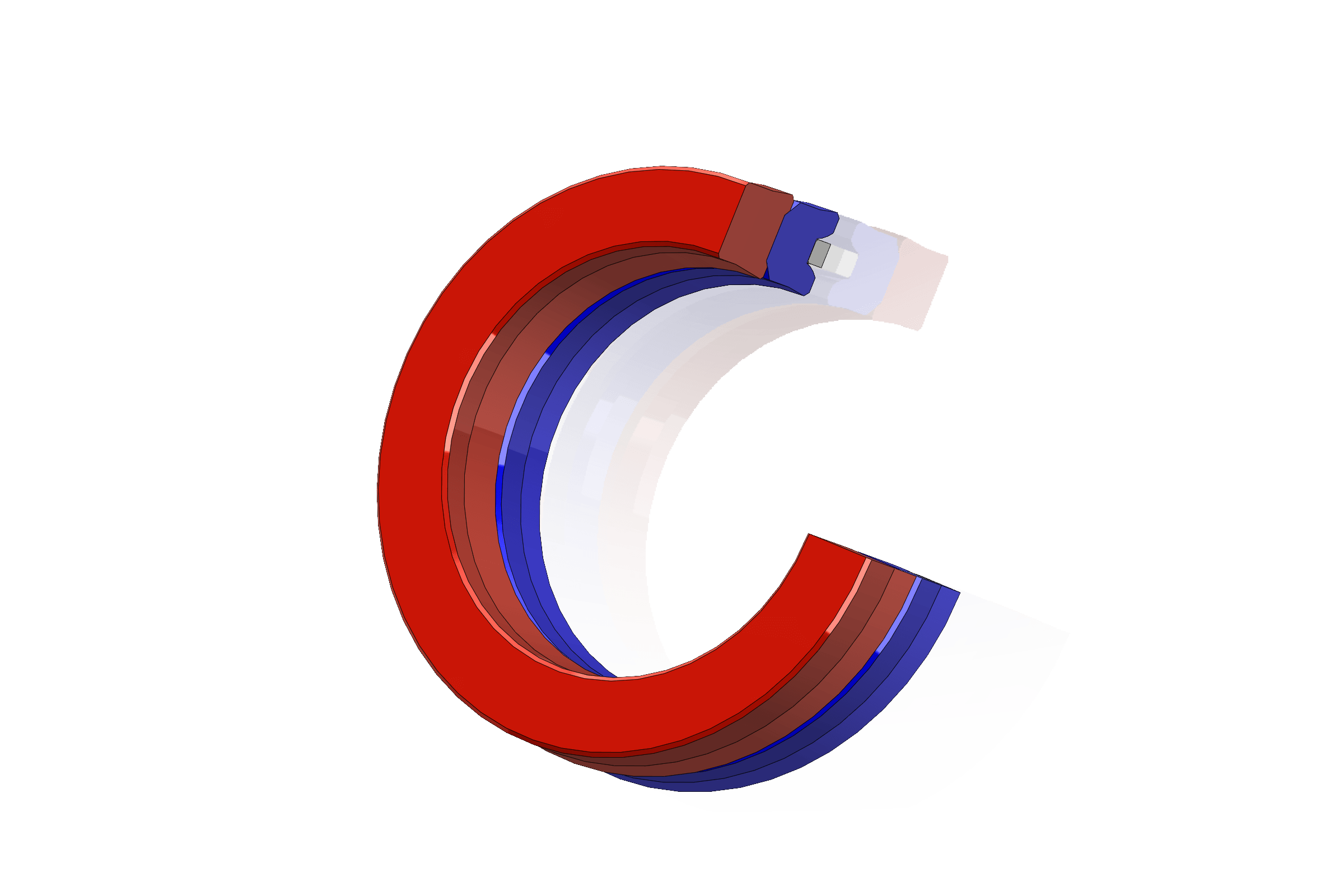

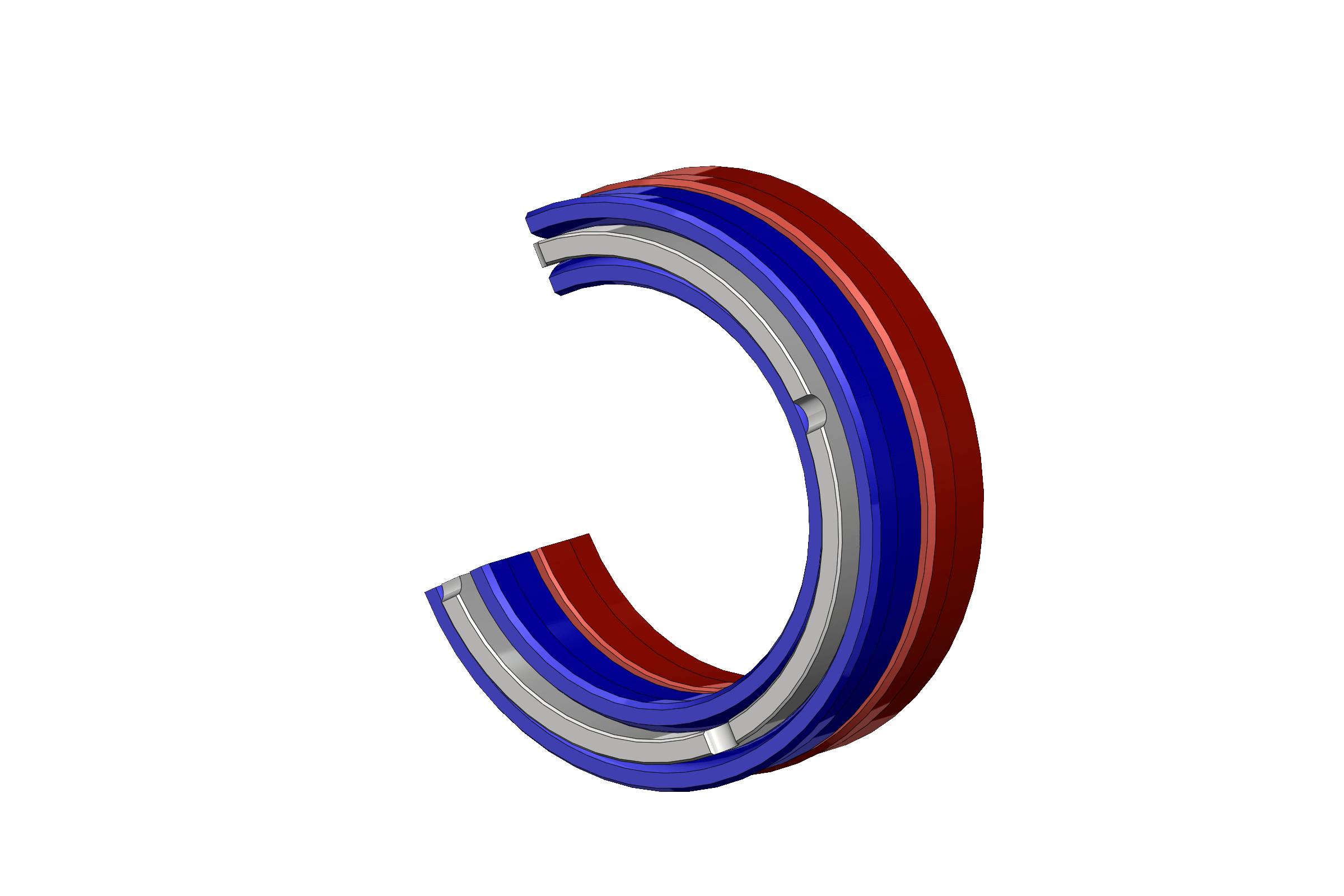

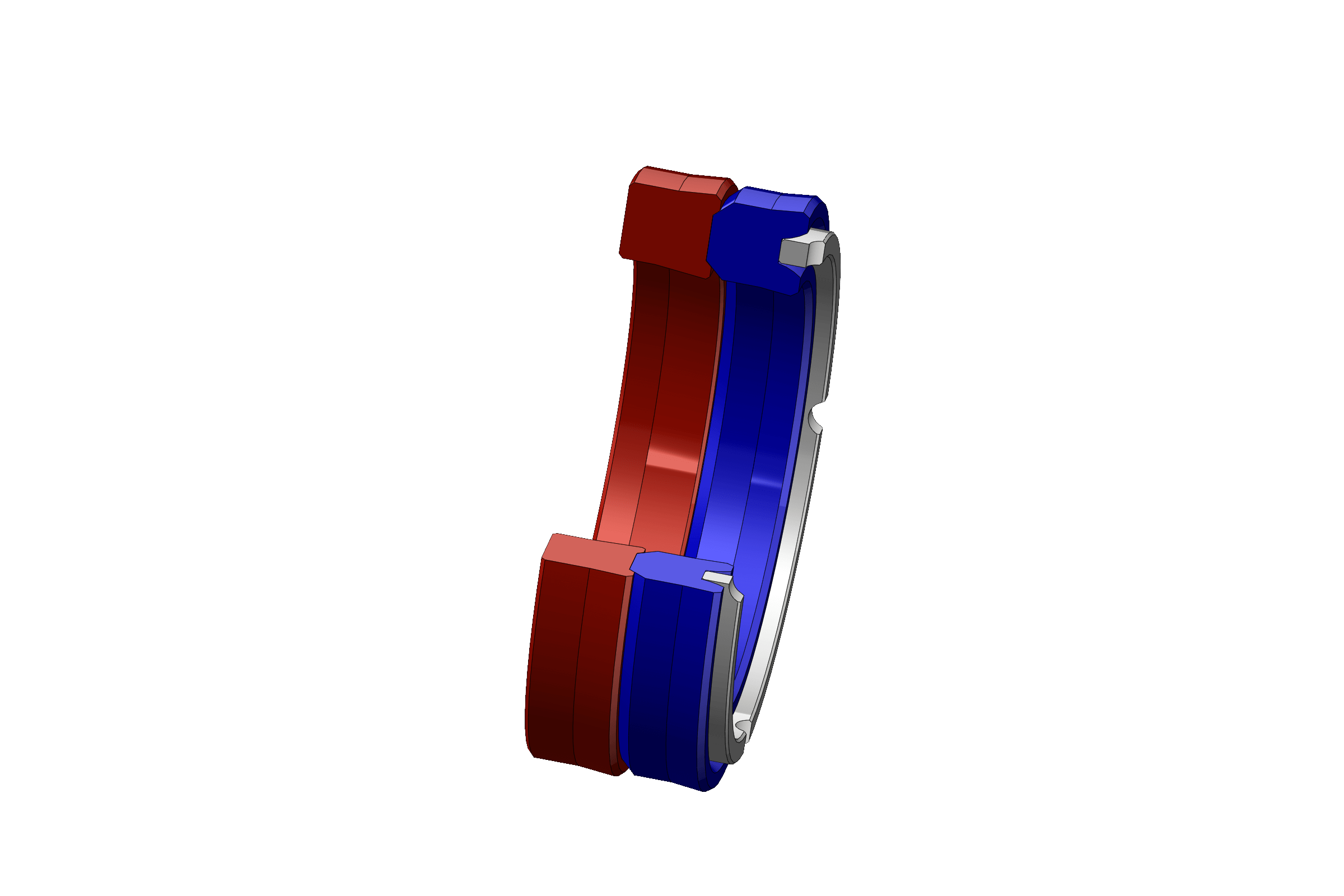

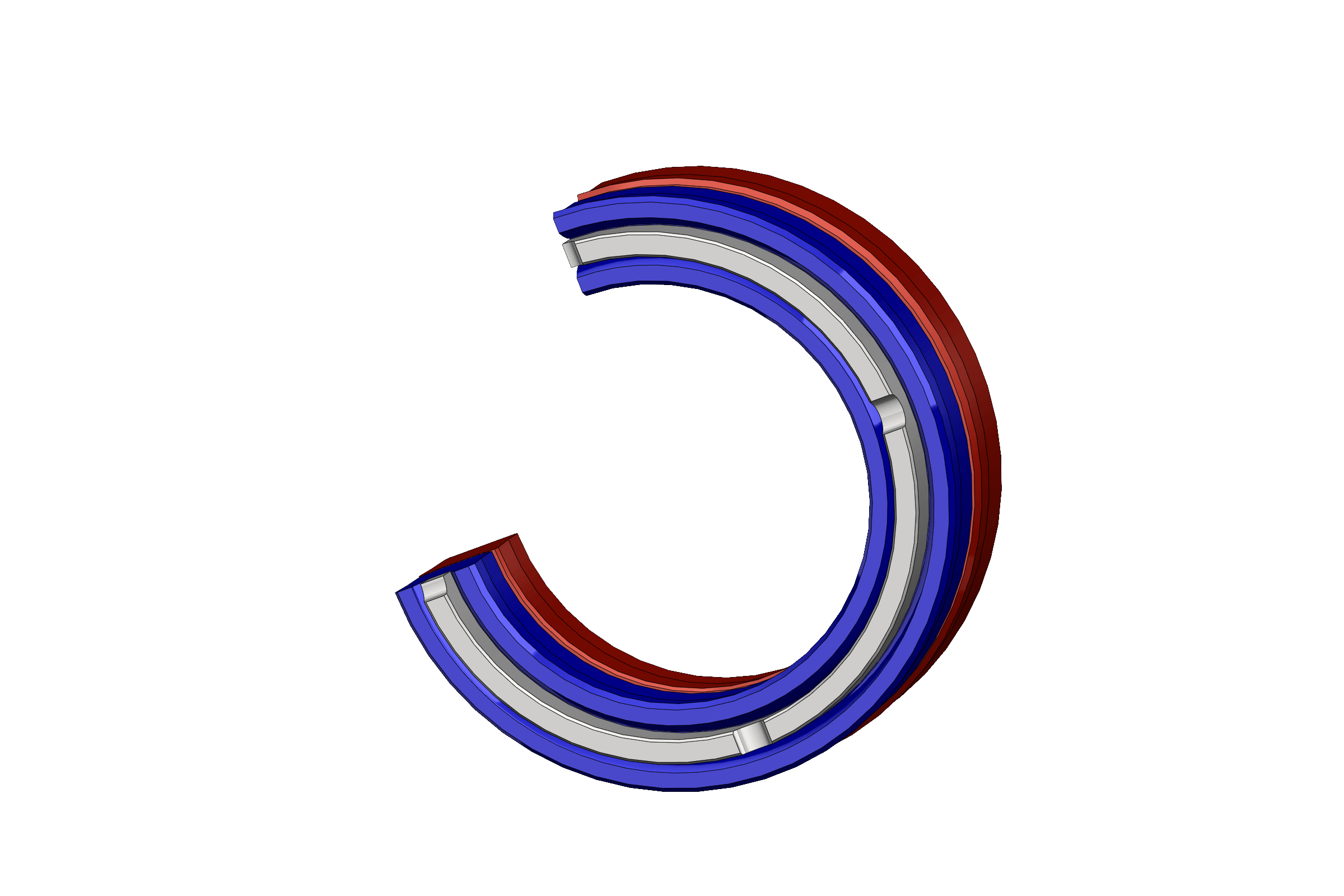

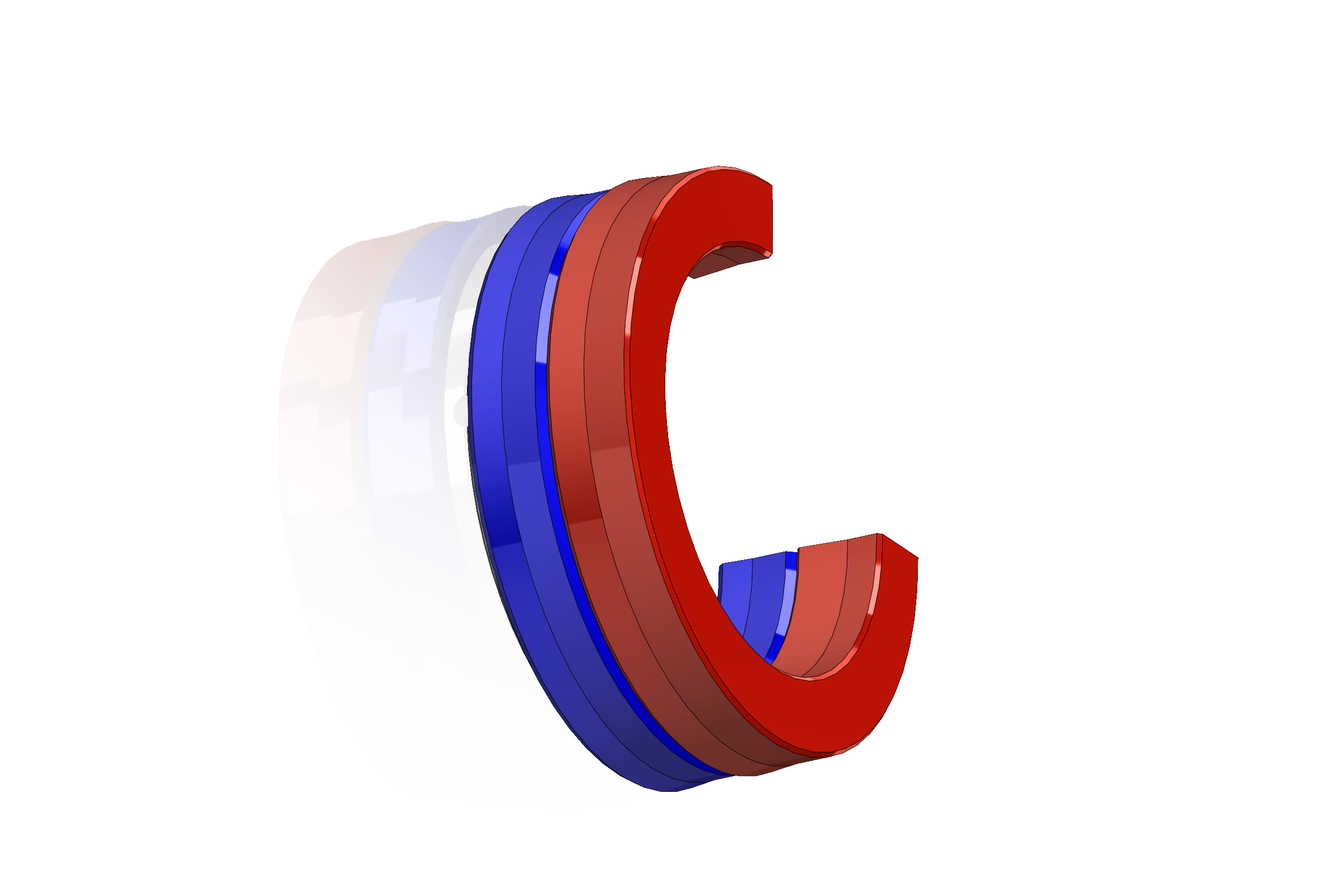

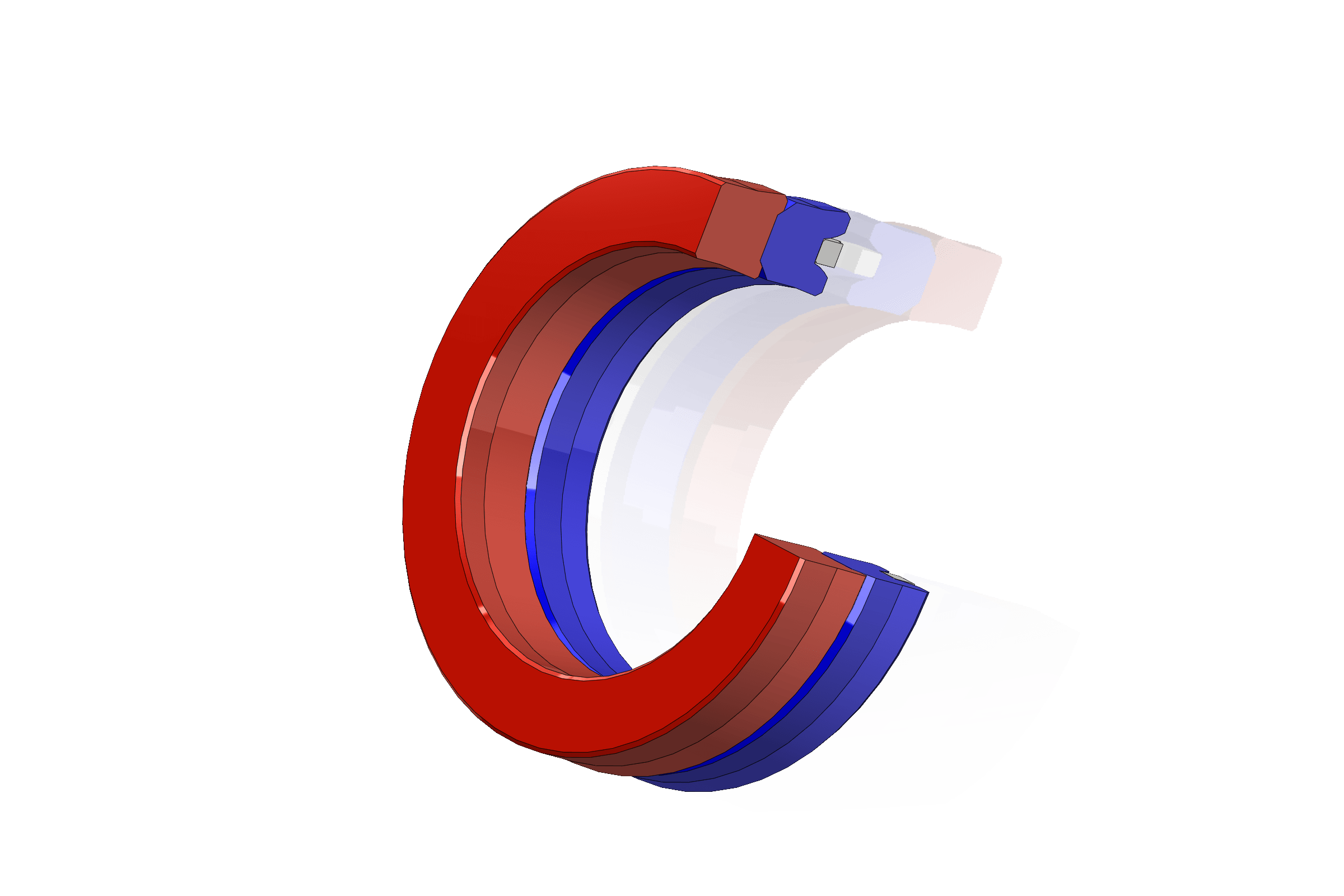

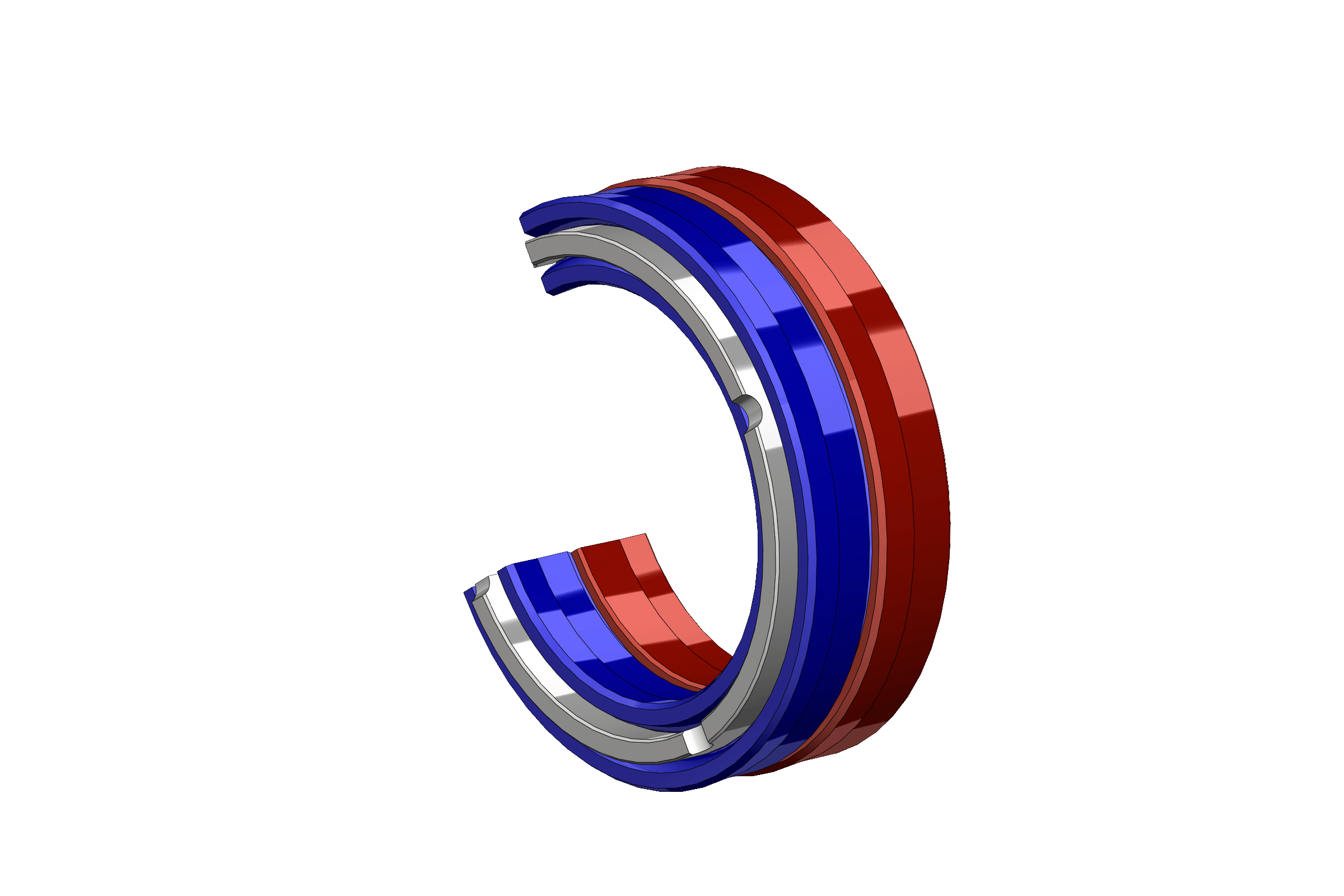

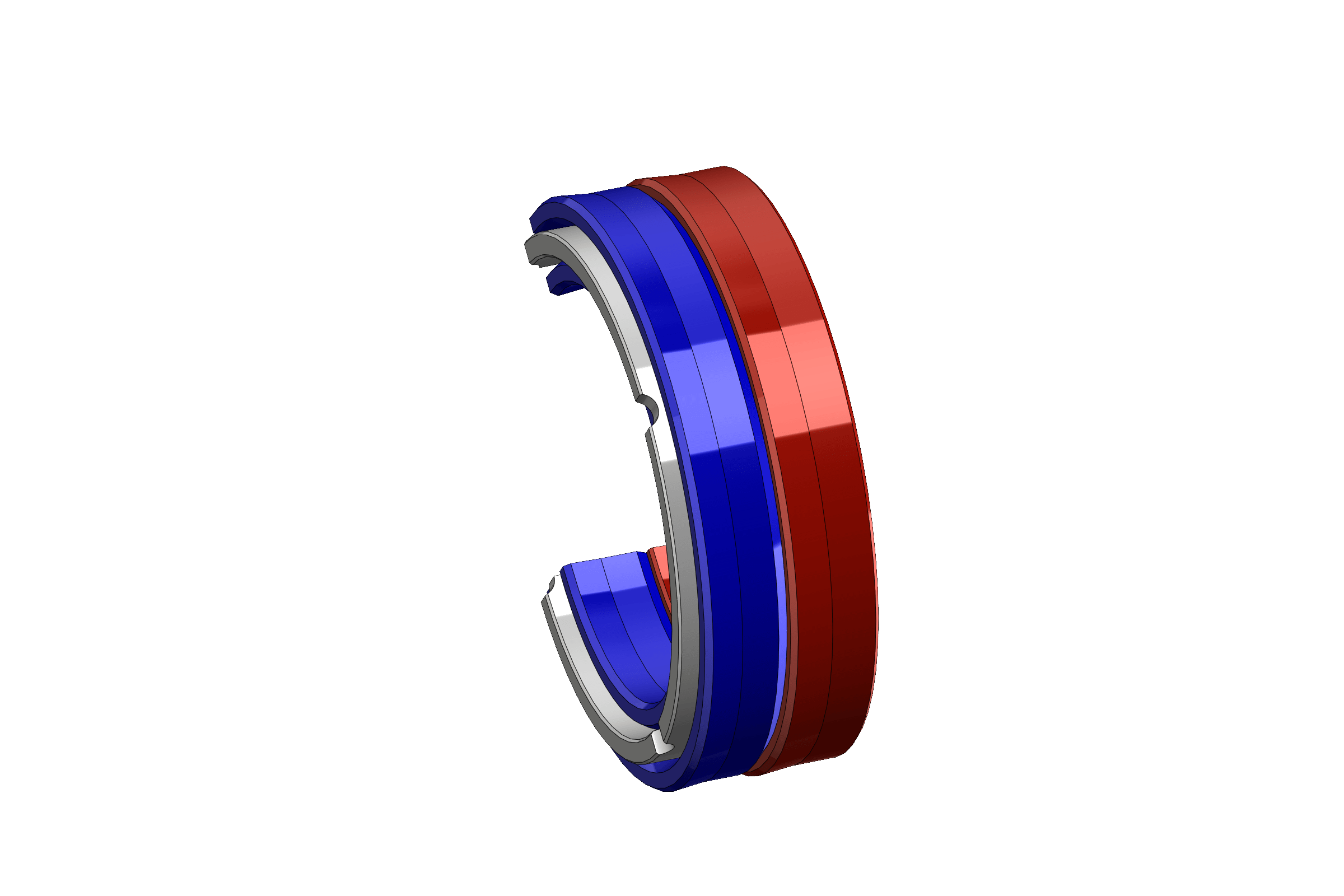

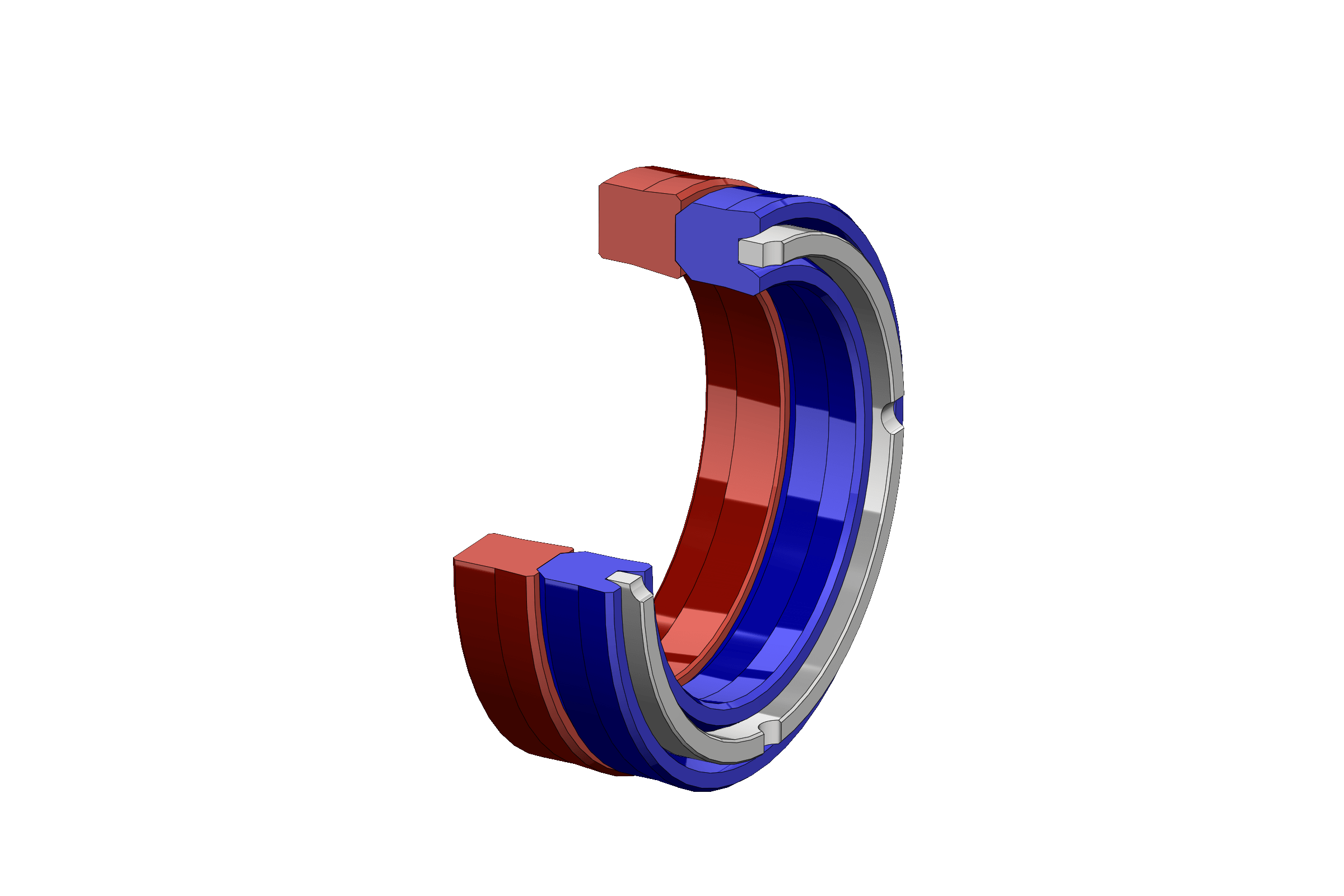

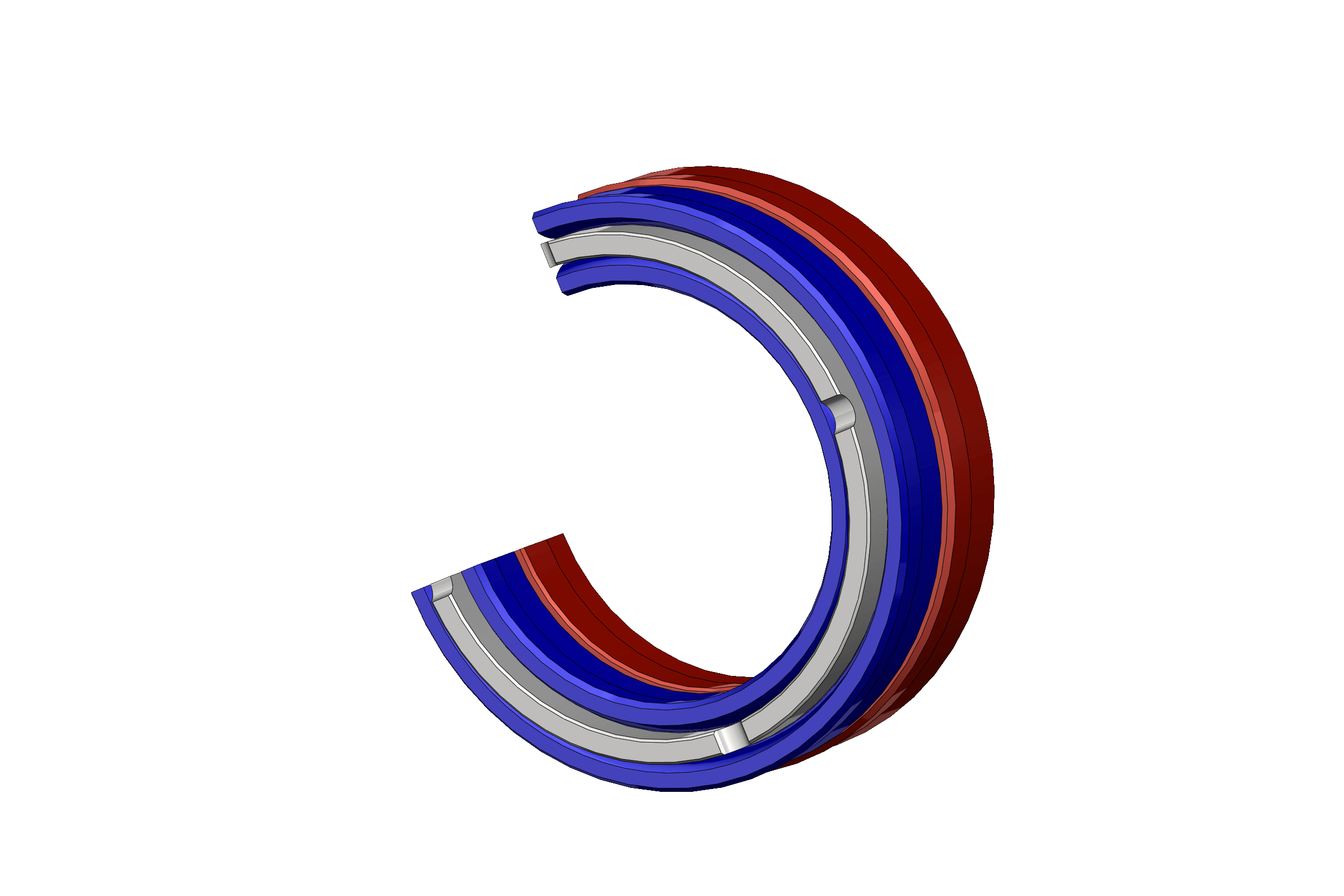

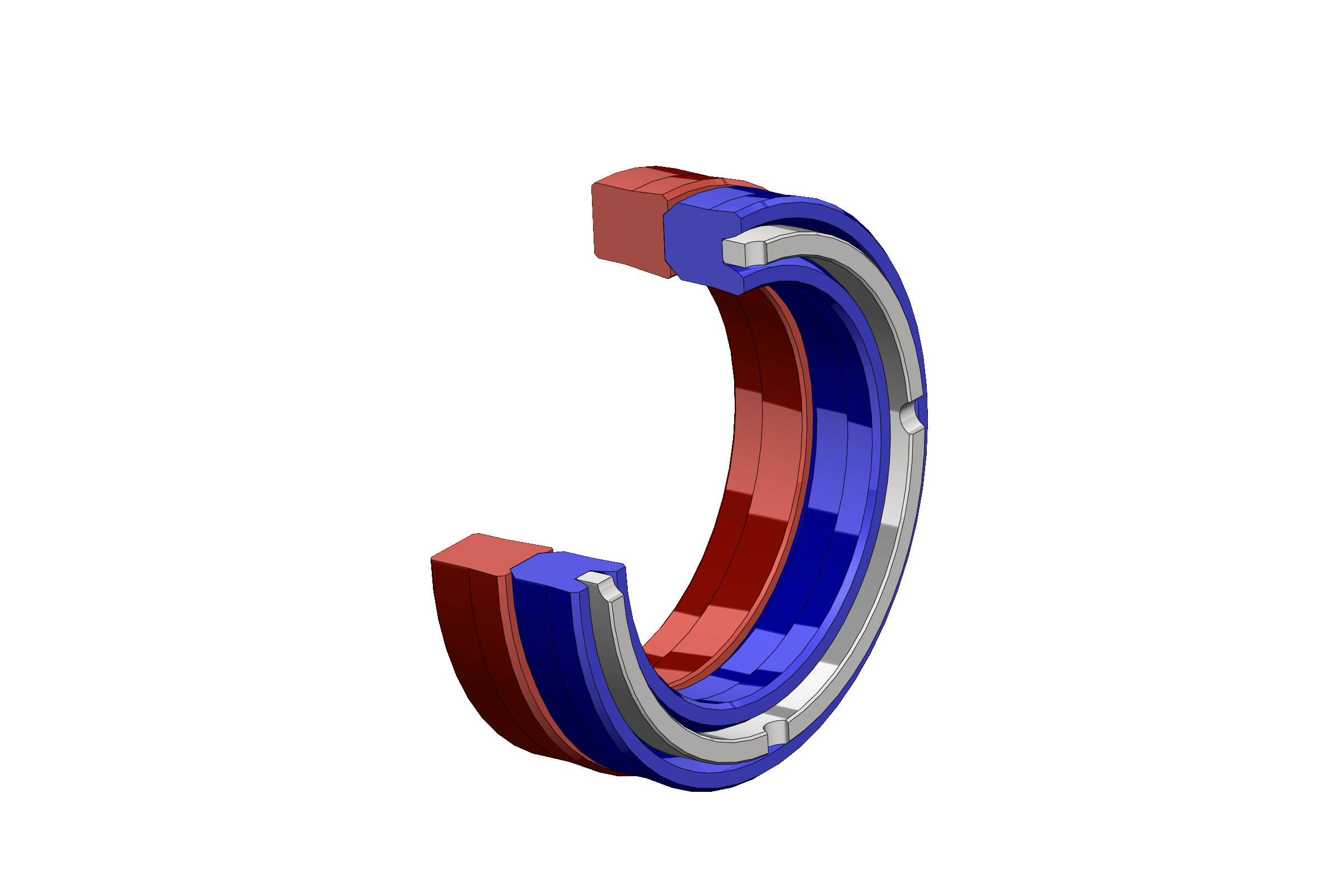

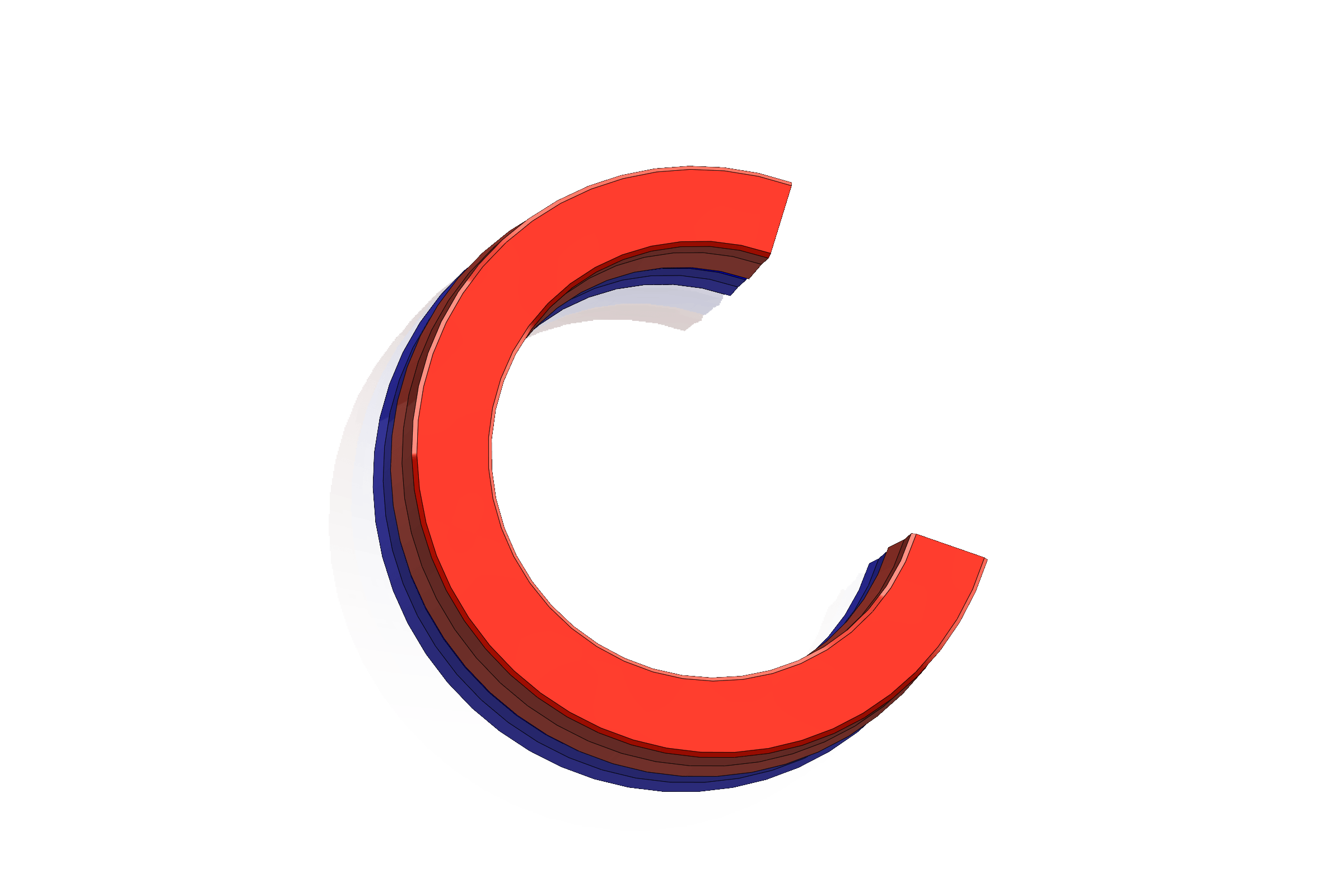

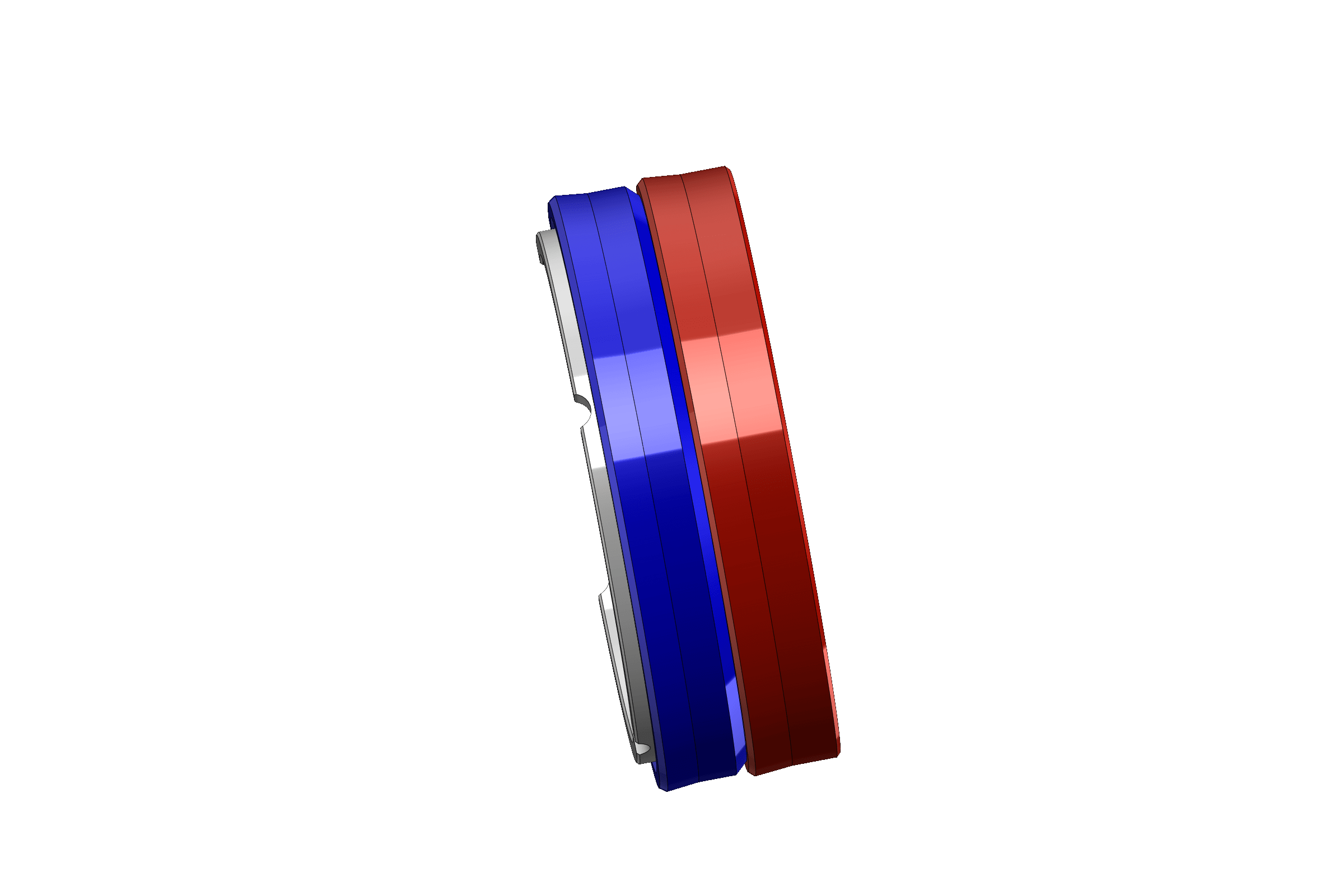

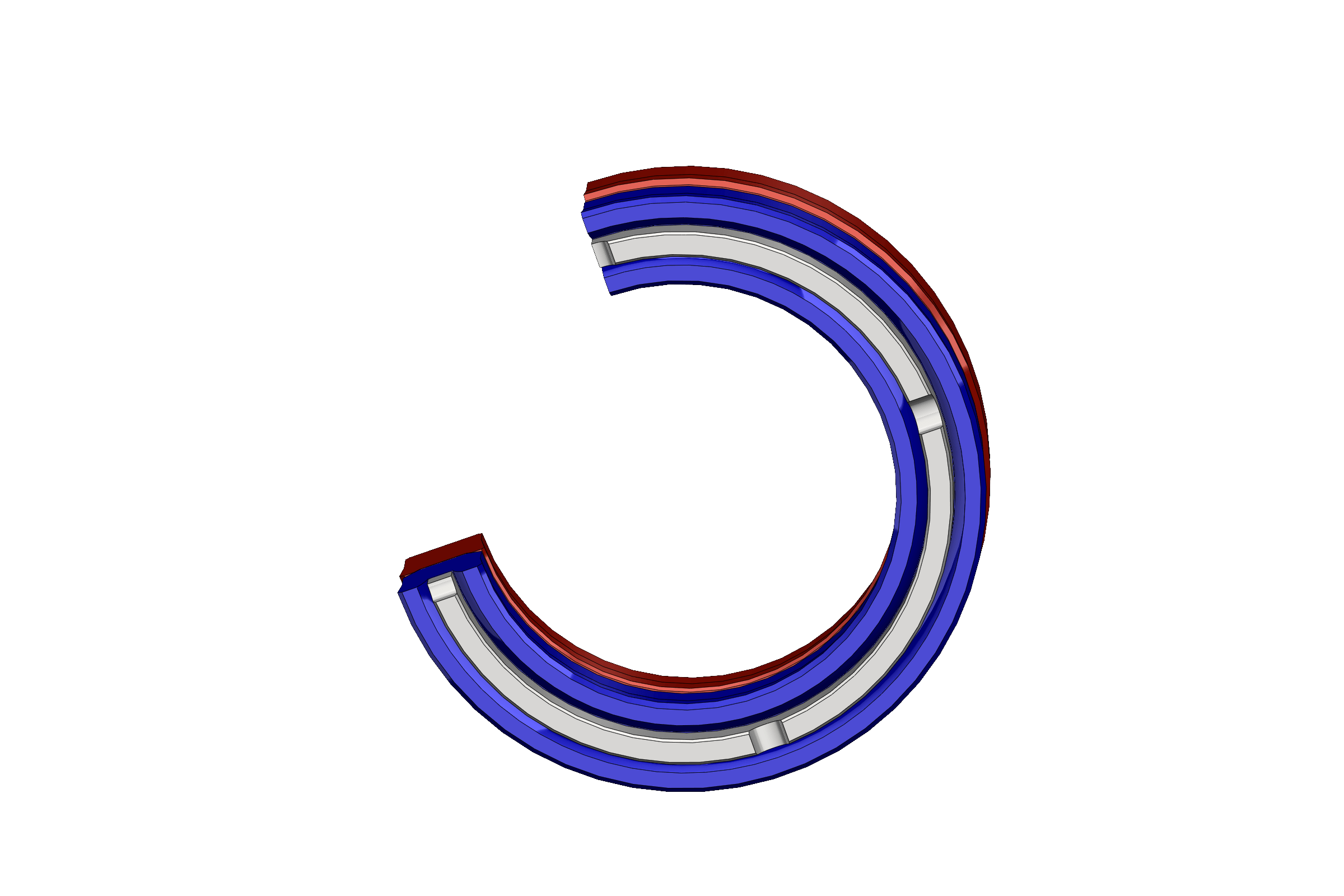

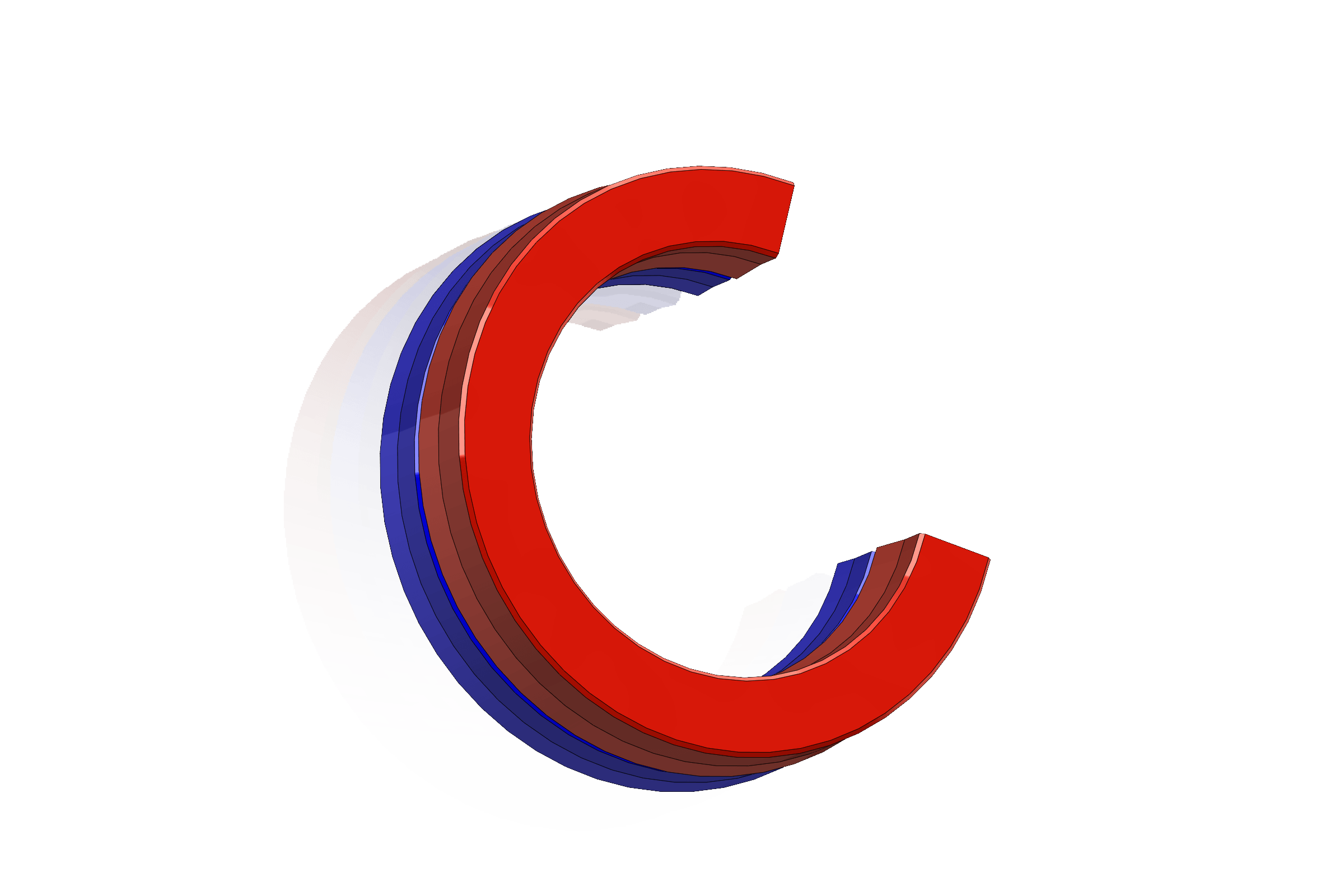

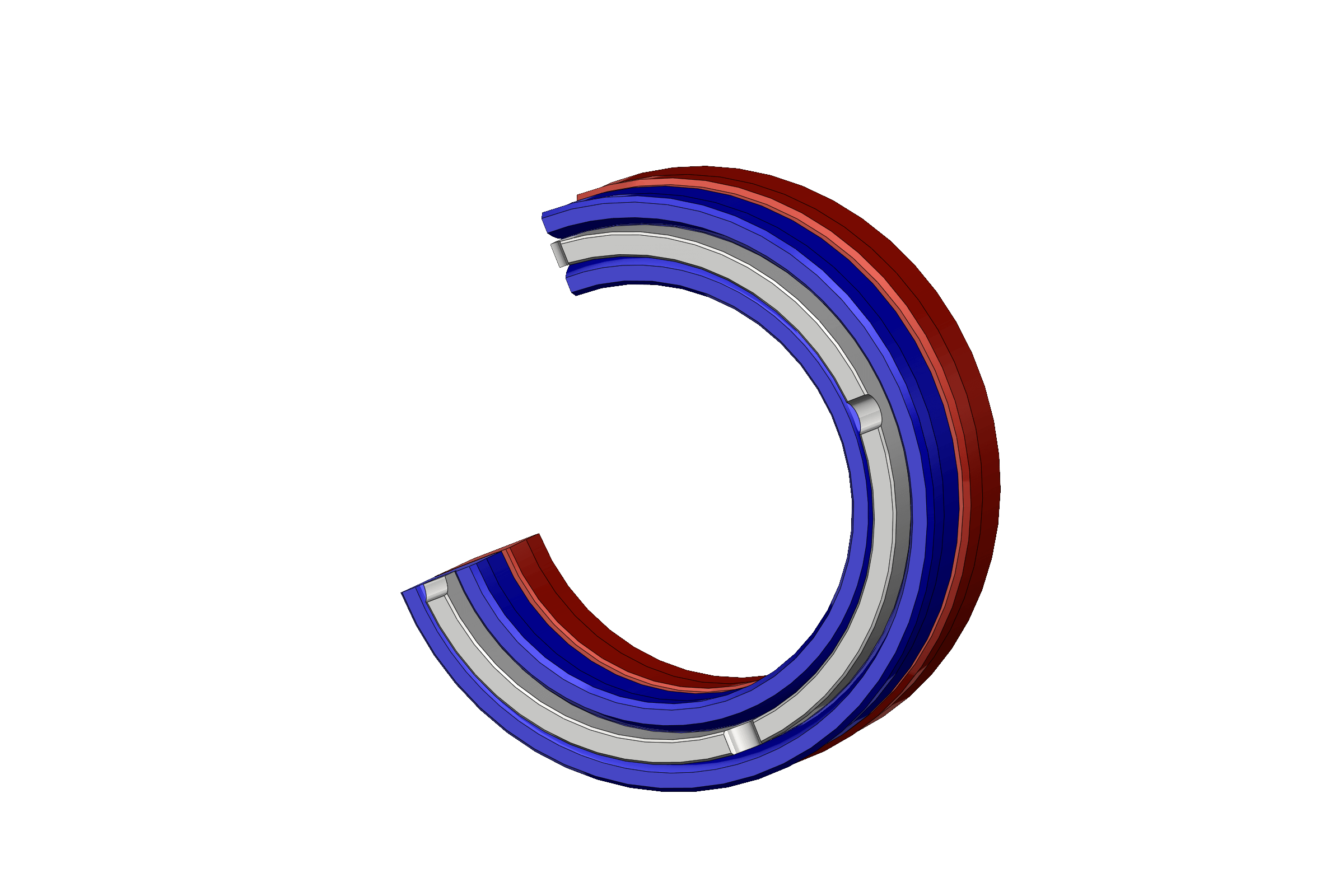

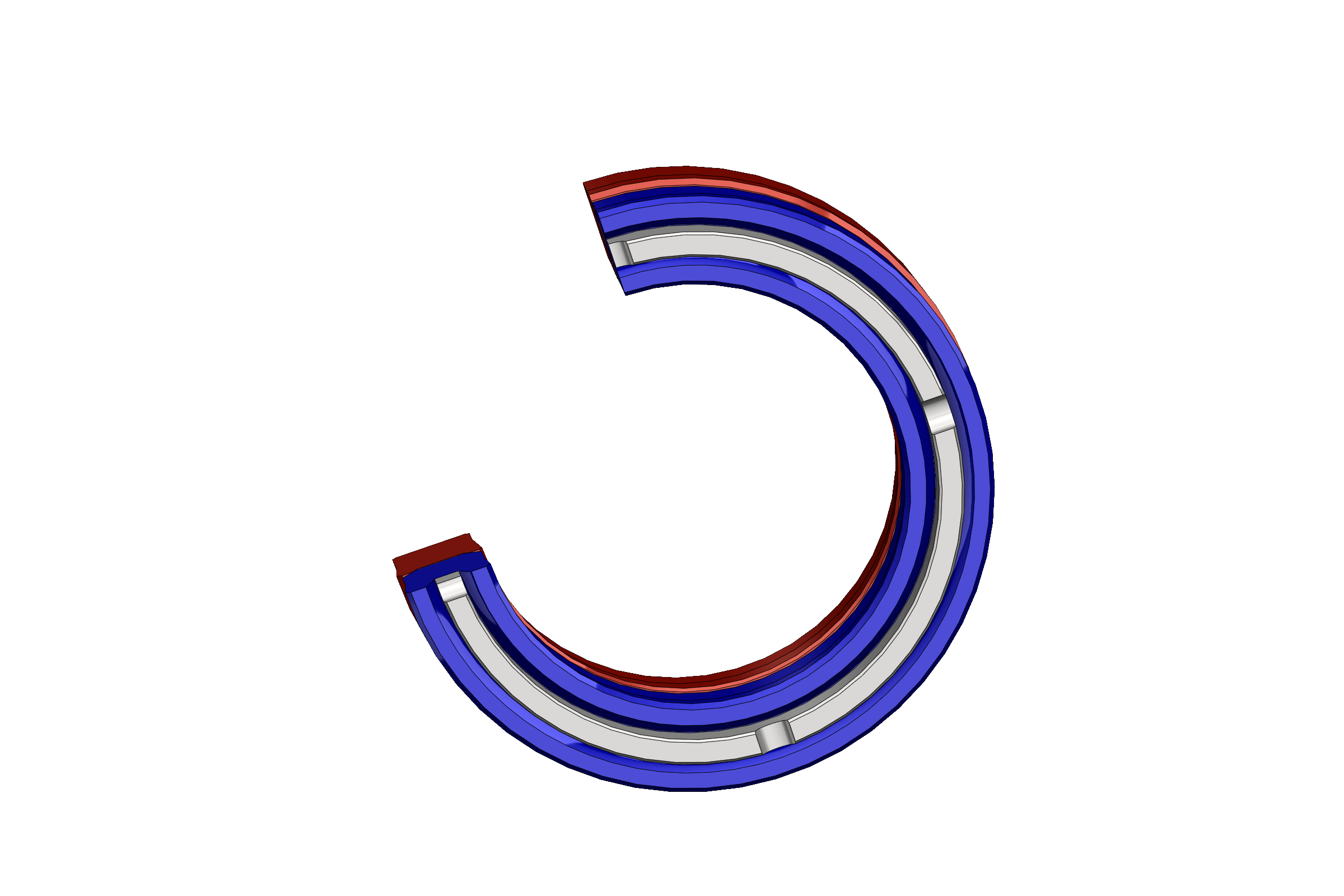

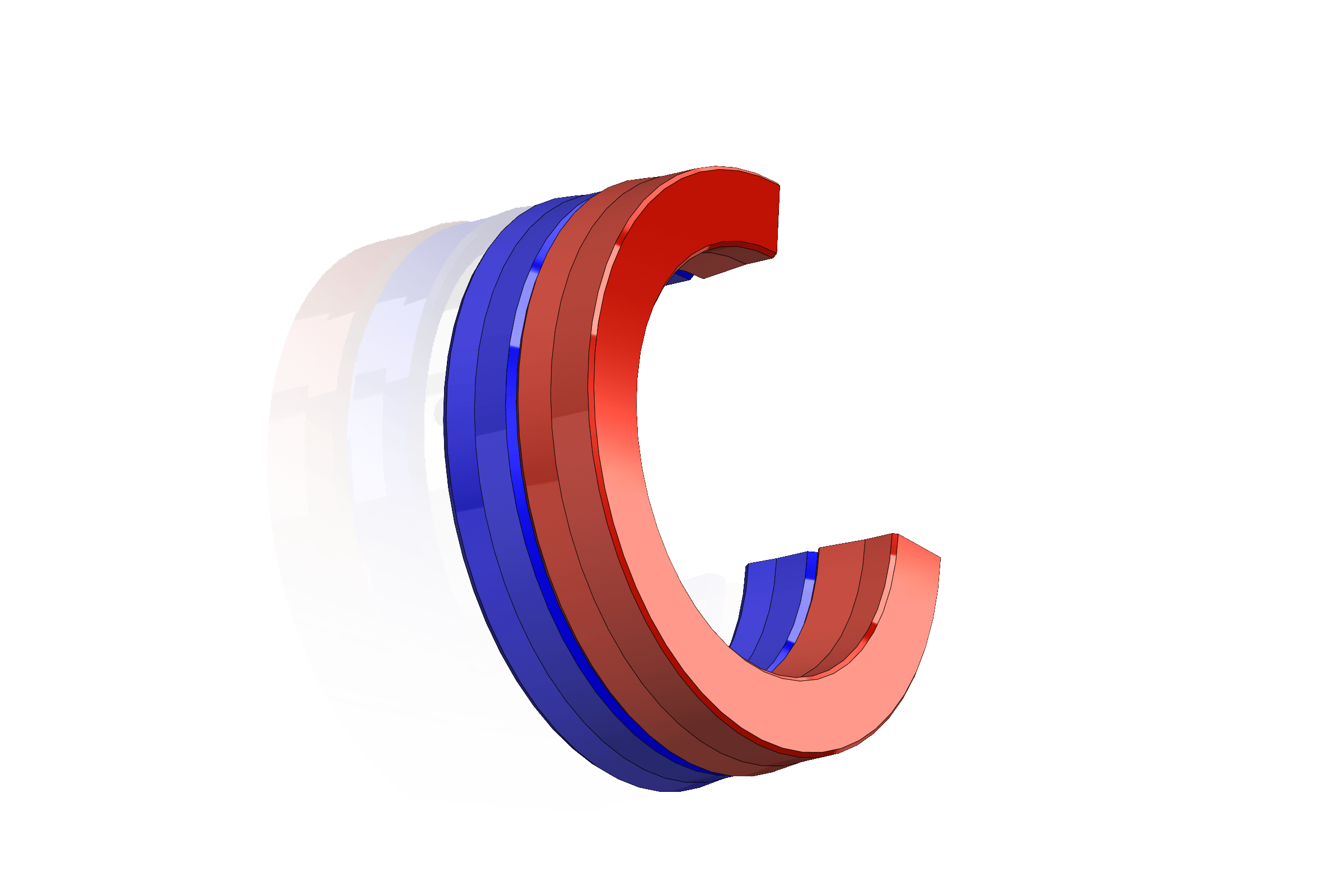

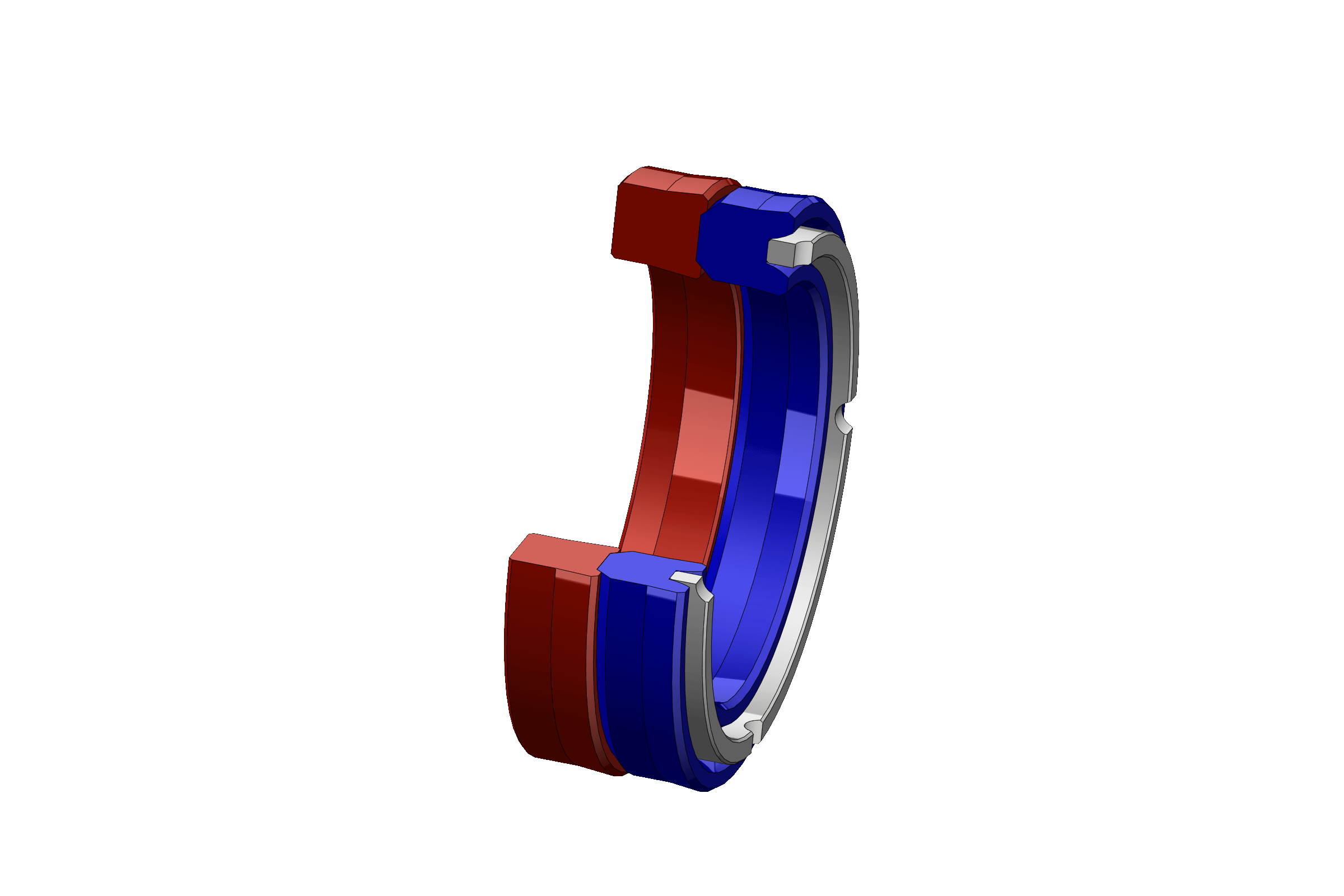

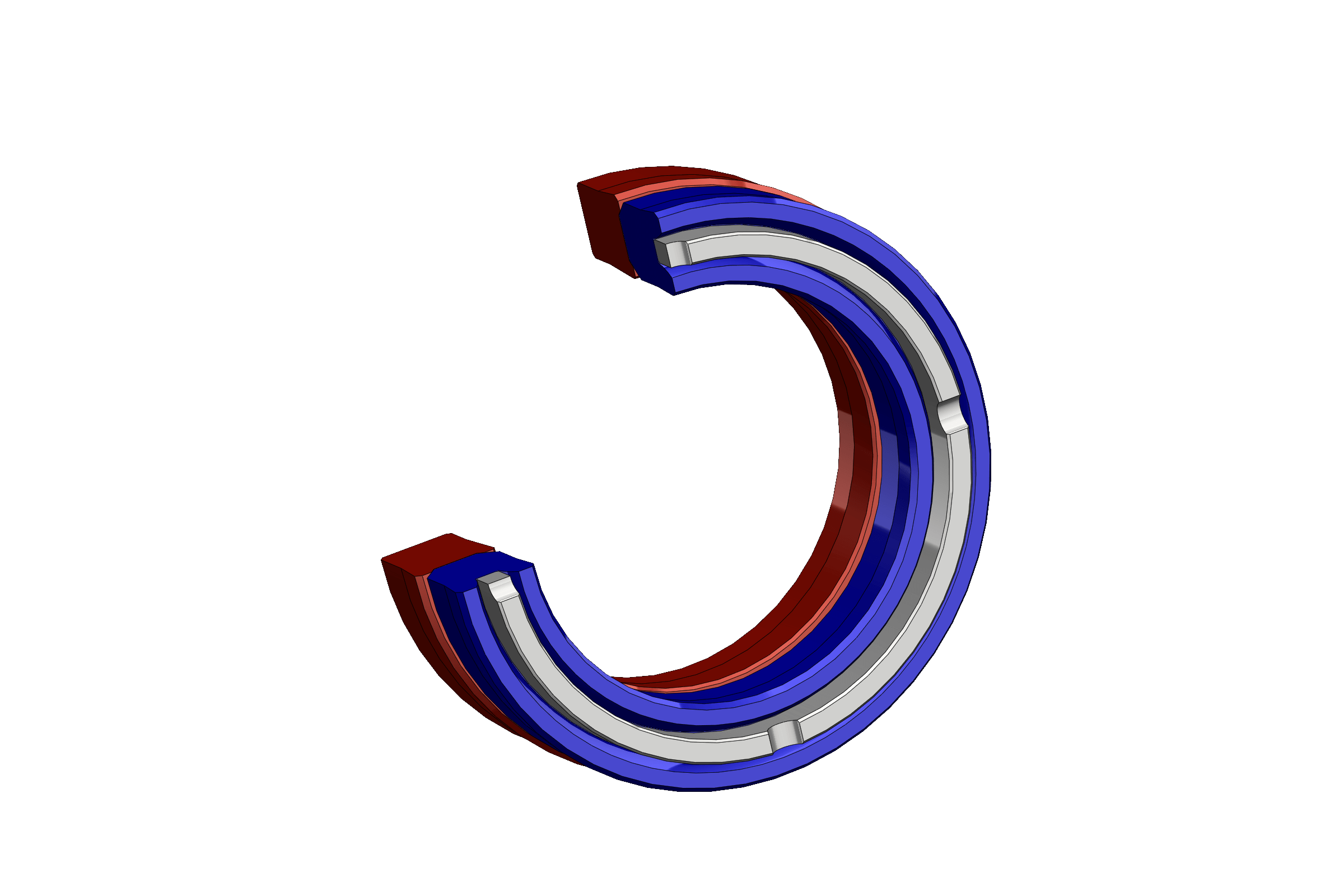

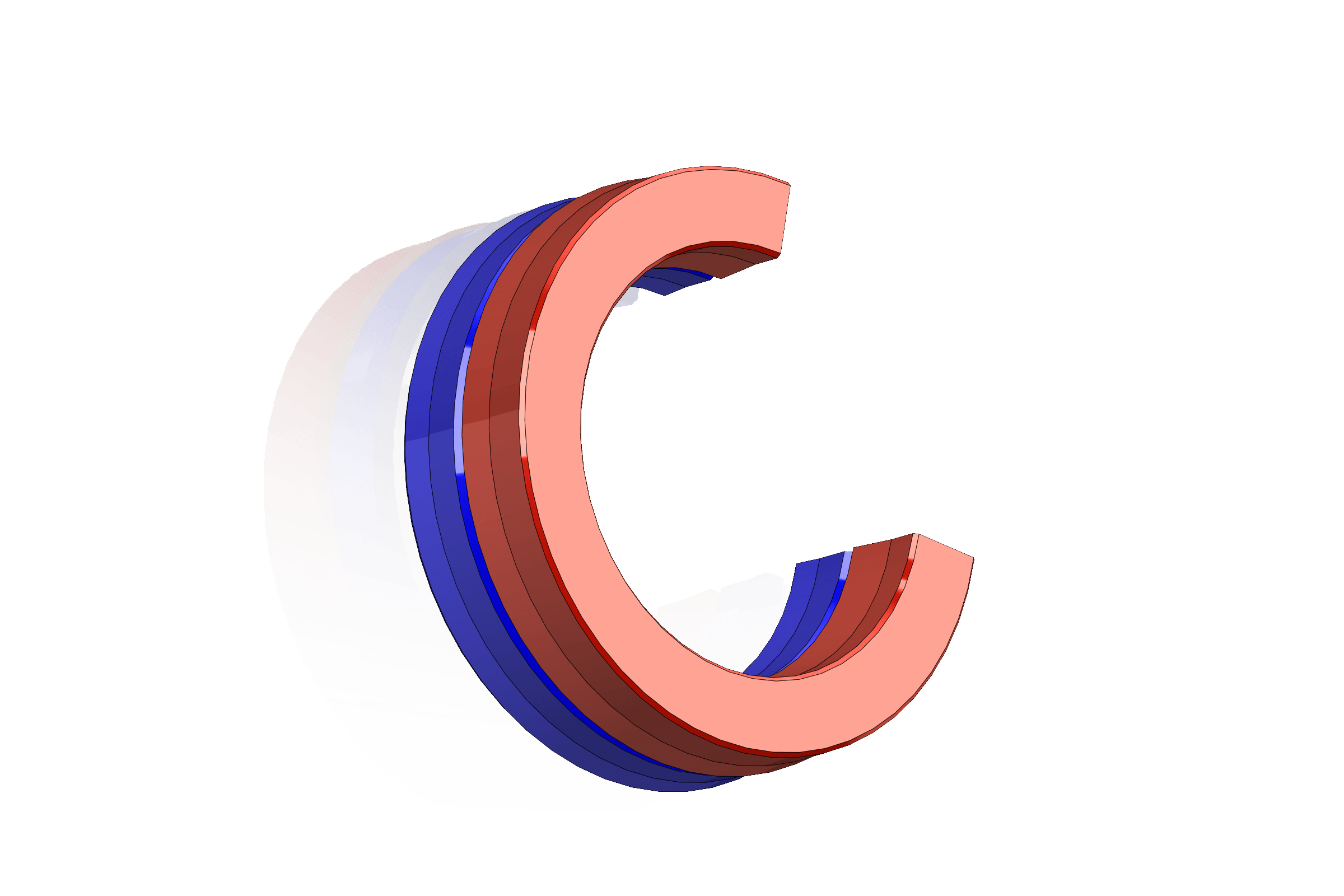

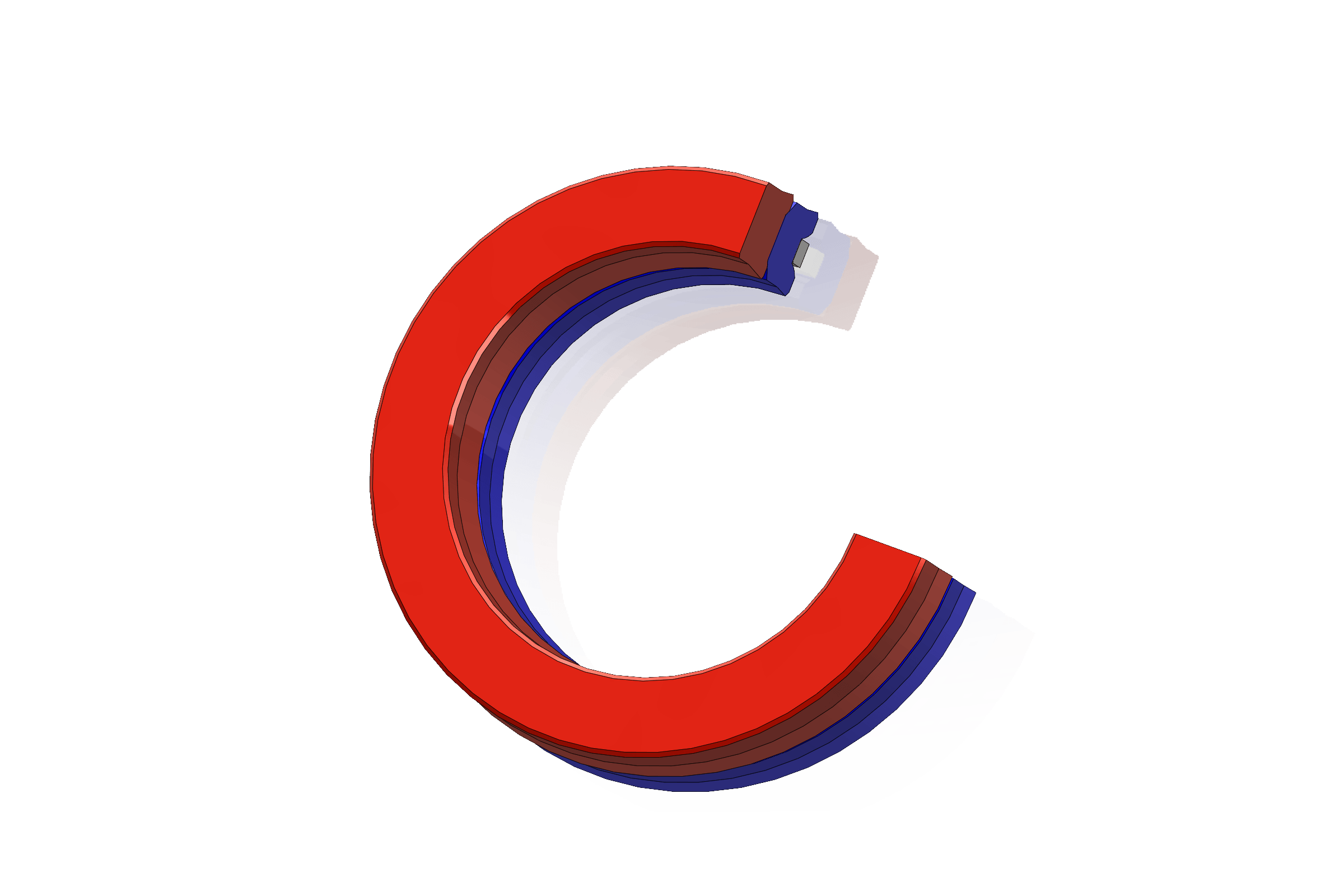

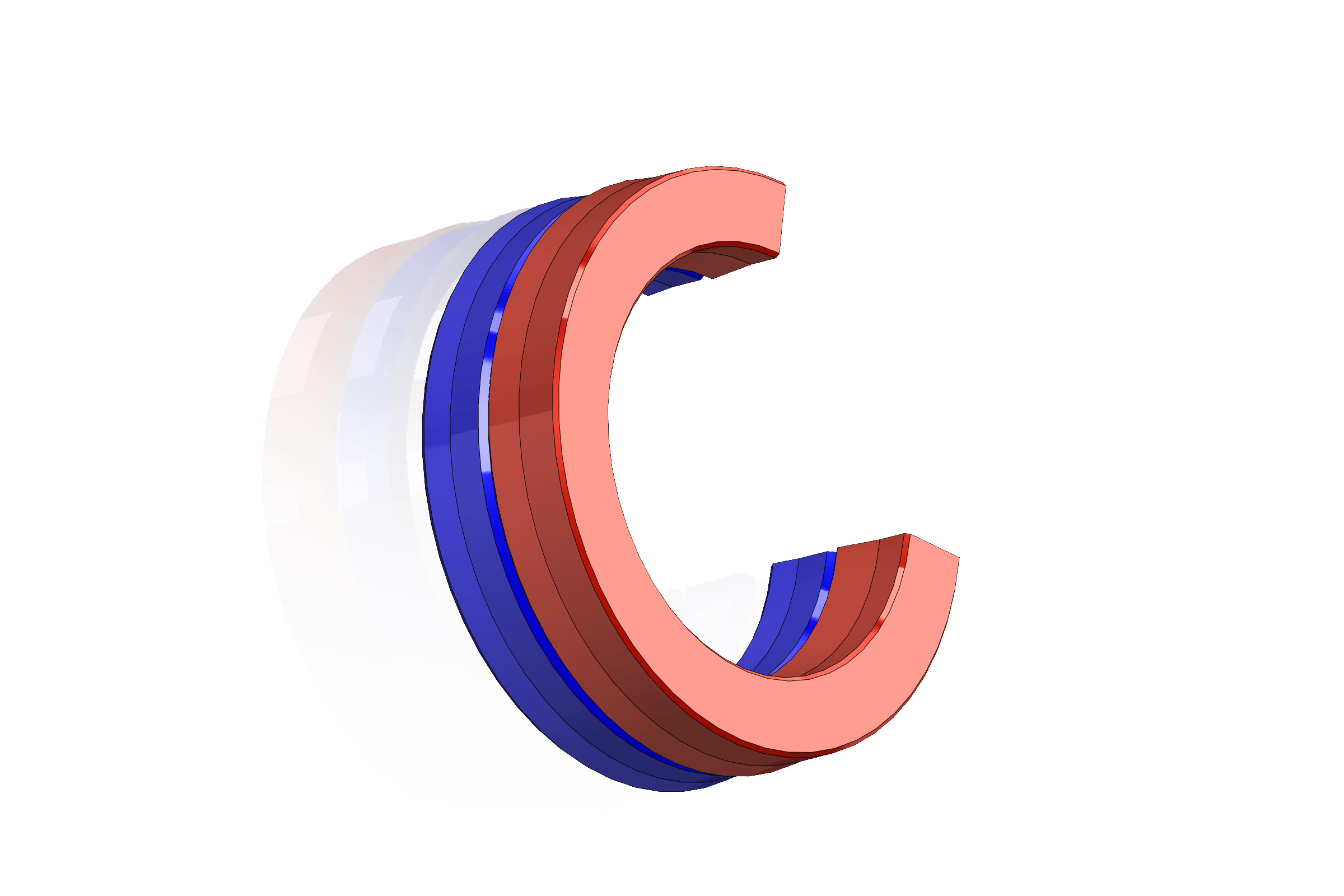

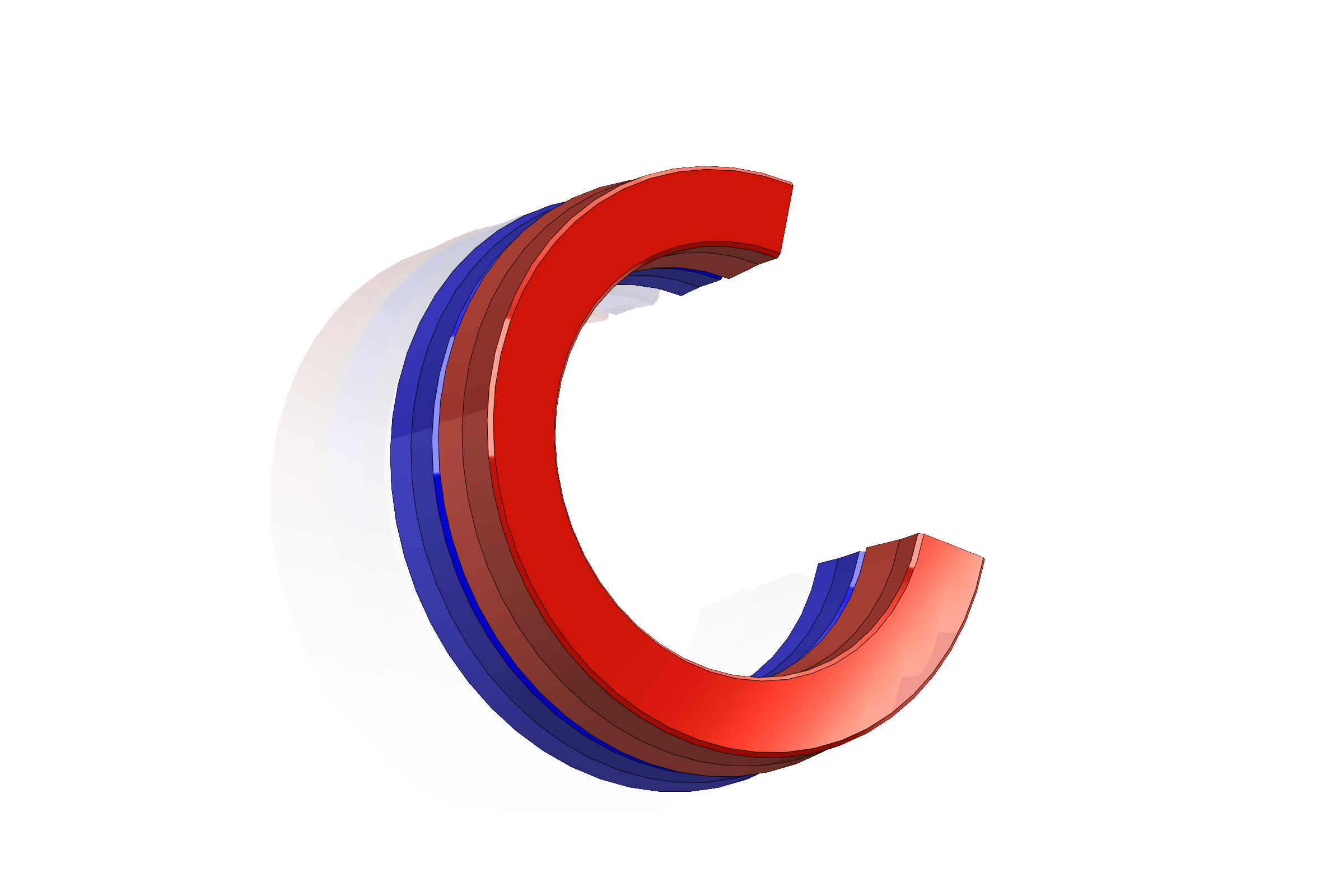

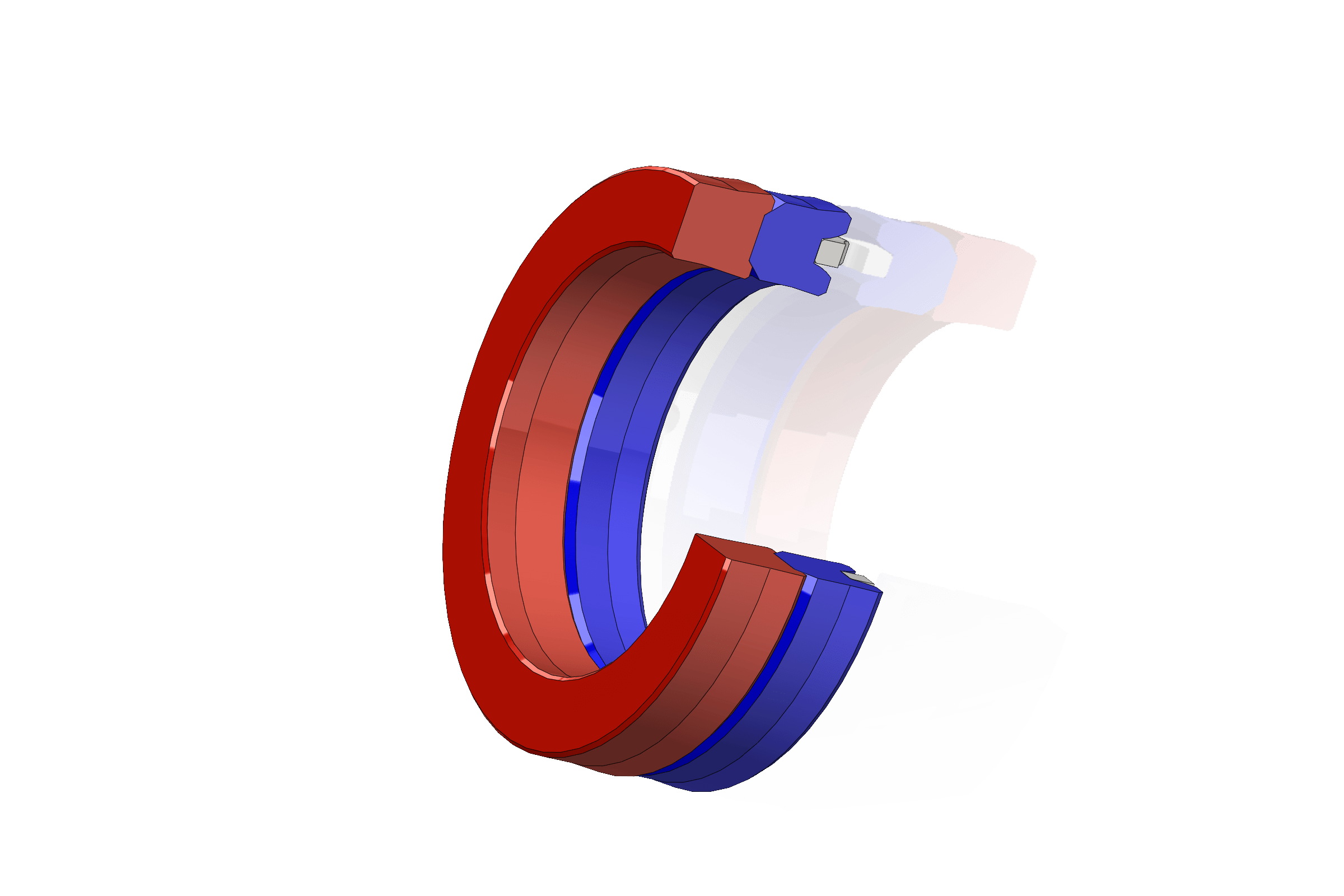

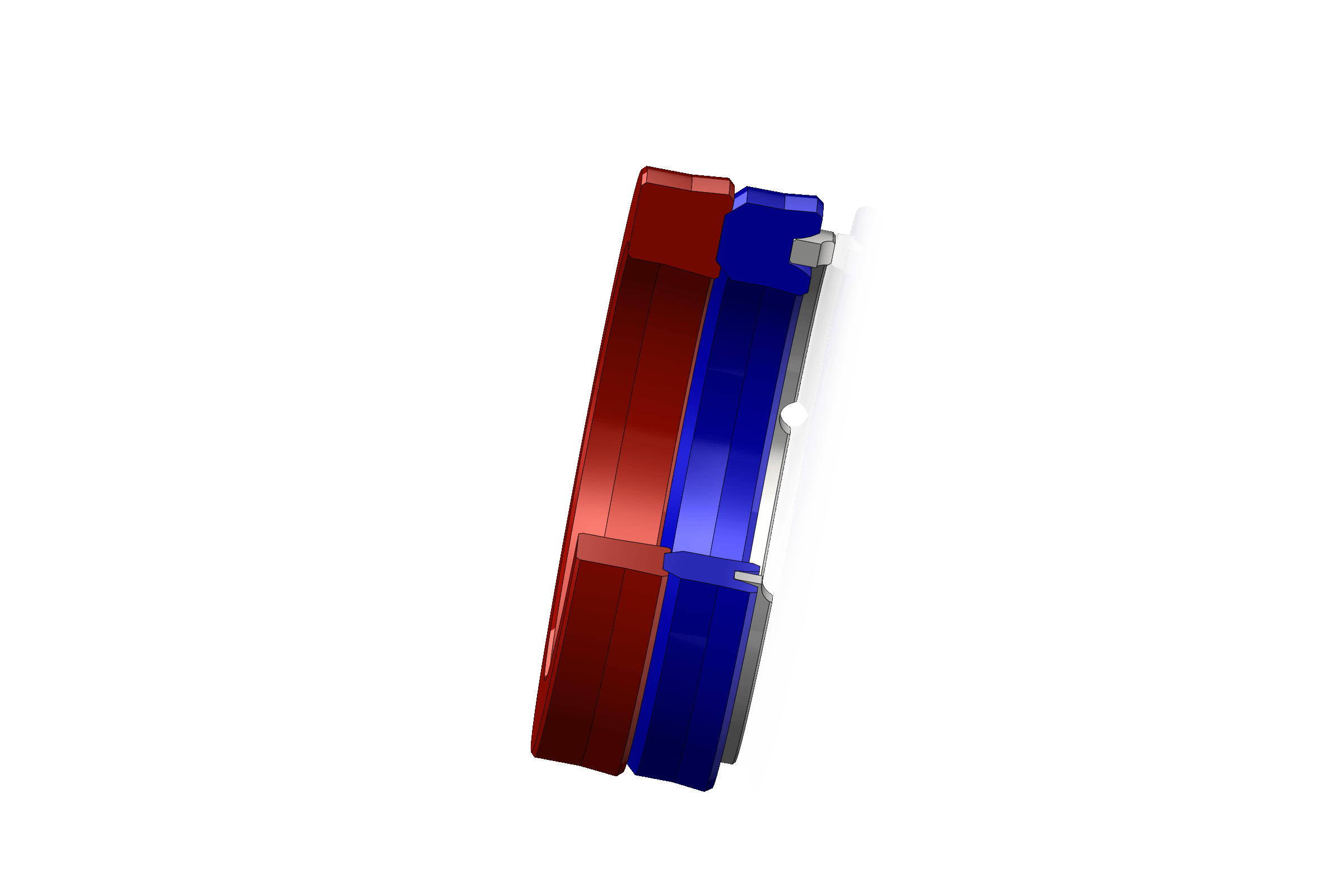

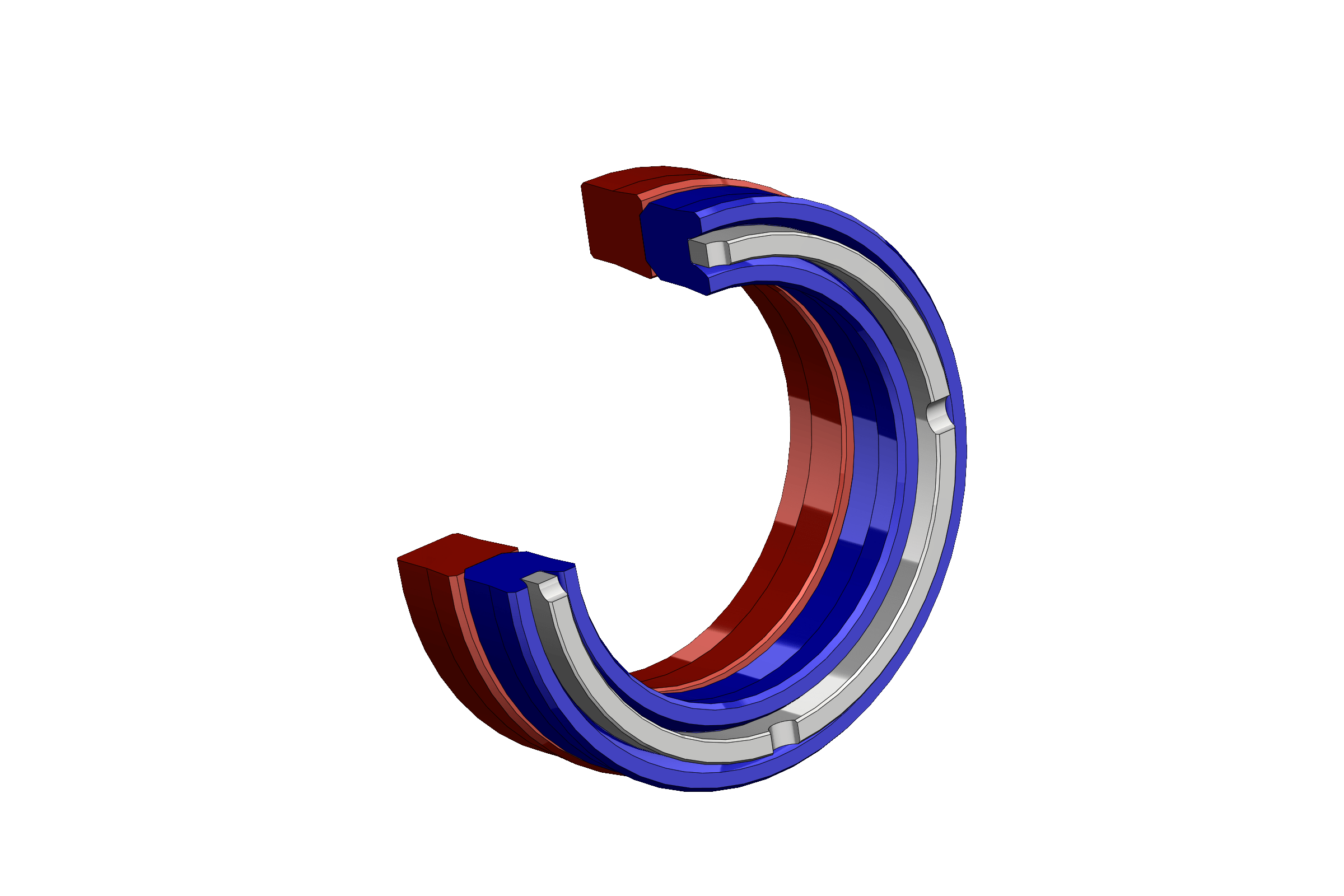

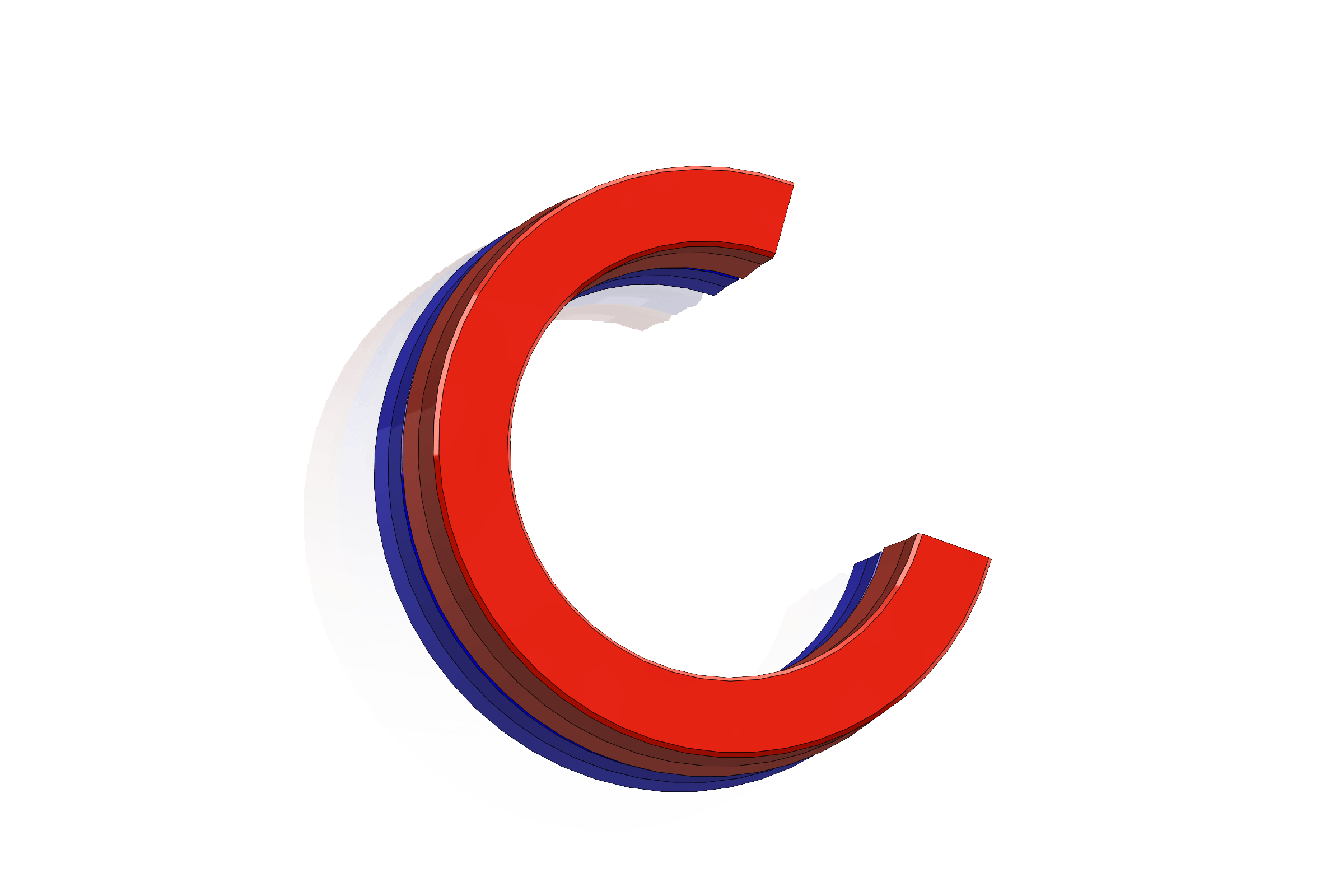

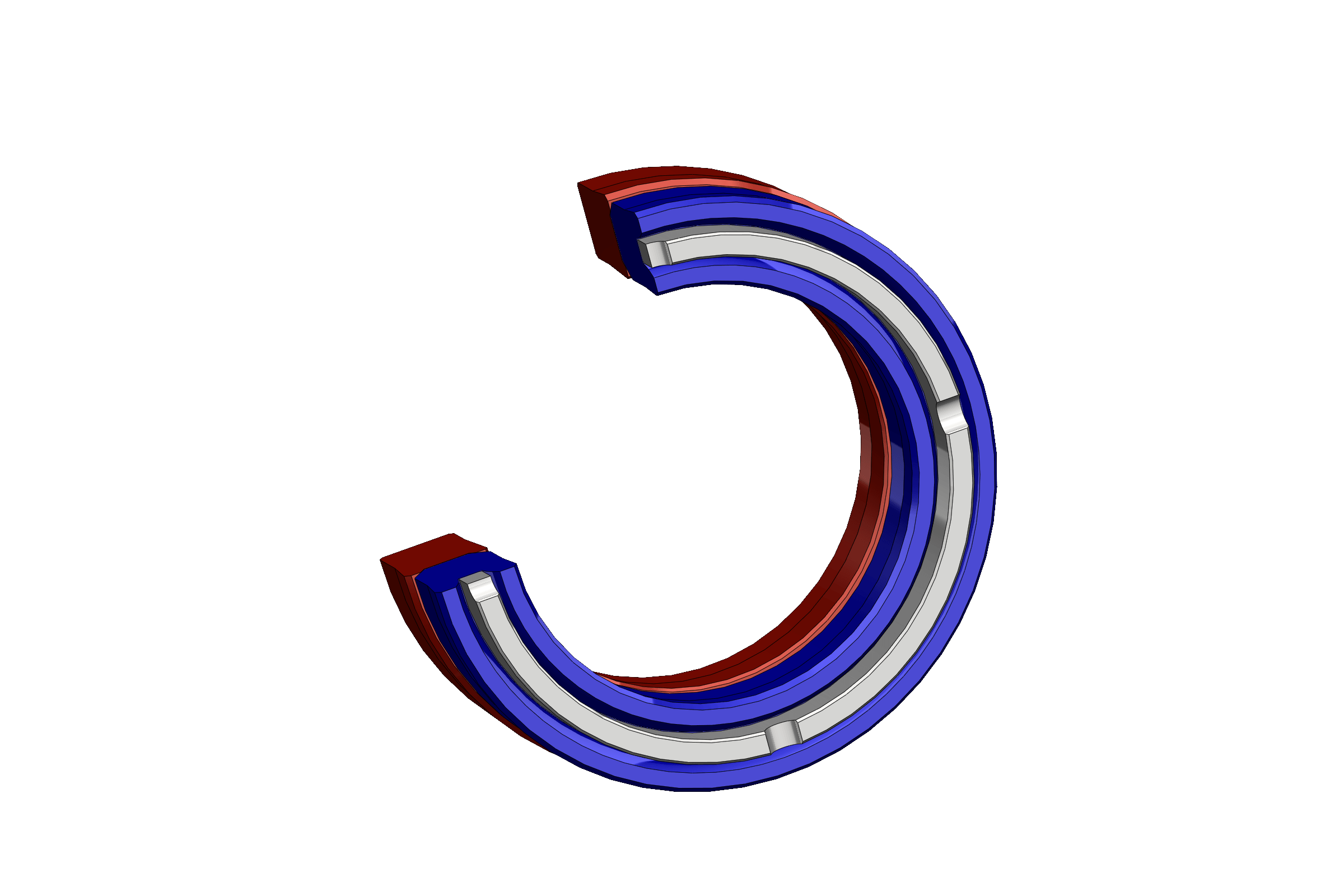

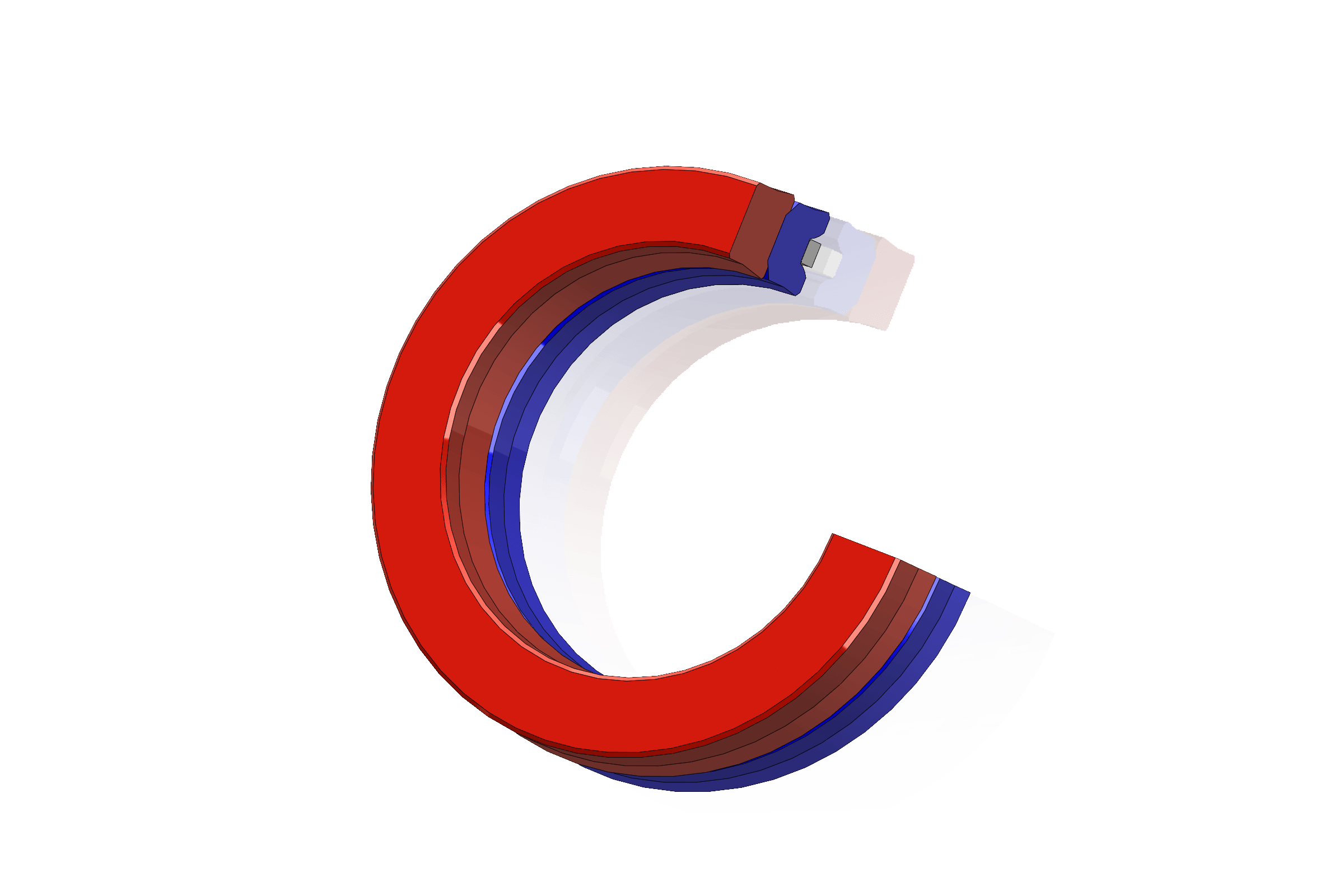

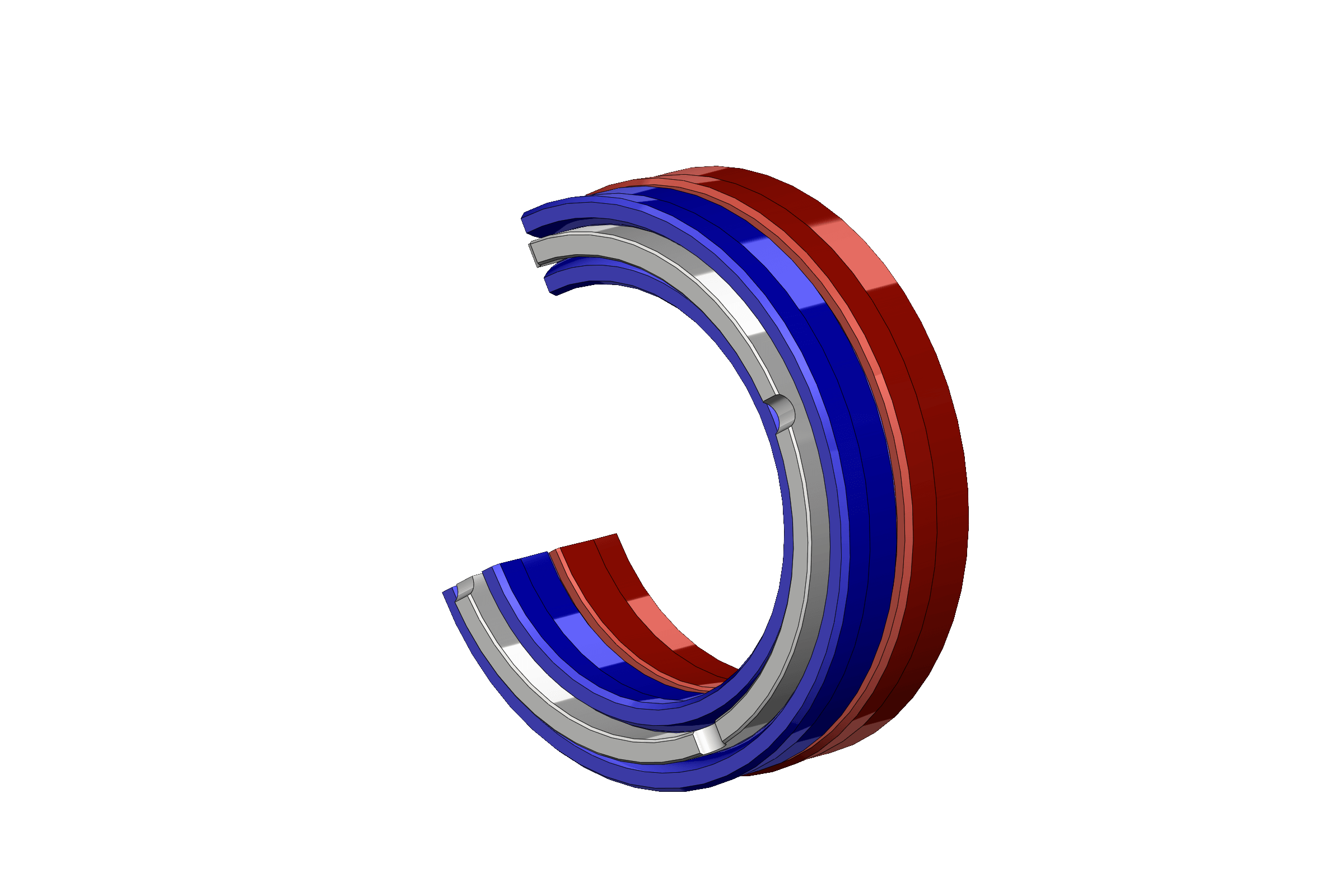

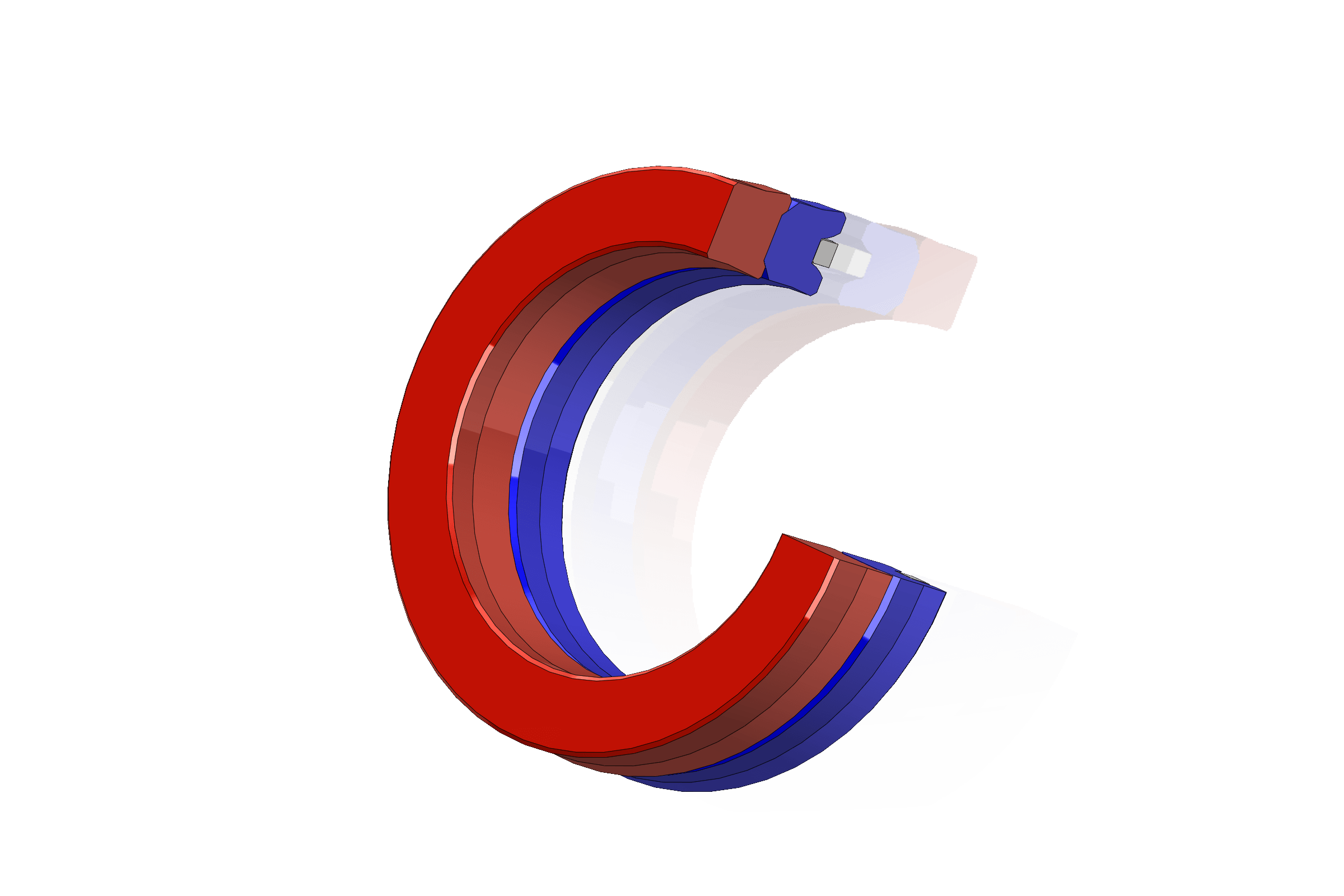

3D Interactive

Product Enquiry

If you would like to enquire about our products, please fill in the enquiry form and one of our team member will get back to you as soon as possible.

Enquire Now

We offer a full range of solutions to:

Reduce premature failure
Improve reliability
Reduce repair, maintenance and operating costs
Extend equipment life
Optimise performance

Our hydraulic and pneumatic seals offering includes:

Wiper seals
Rod seals
Piston seals
Face and static seals
Ancillary devices

Download our Chesterton Customseal Profile Chart and Materials

Rod Seals

The function of a rod seal is to prevent fluid bypass along the dynamic (rod or ram) and static (stuffing box bore) surfaces while a cylinder is operating under various operating conditions. Chesterton offers numerous, highly-effective rod seal profiles to choose from, including u-cup, stacked and compression designs, depending upon the application requirements and operating conditions.

Wiper Seals

The function of a wiper is to effectively clean and dislodge foreign matter from a reciprocating rod/ram during the retraction stroke to prevent contaminants from entering the system. A positive-rake profile made from a durable sealing material has proven to dislodge foreign matter effectively from a rod/ram blocking system contamination and minimize additional scoring in both hydraulic and pneumatic applications.

Piston Seals

The function of a piston seal is to prevent fluid bypass between the piston head (static) and cylinder bore (dynamic) while a hydraulic or pneumatic cylinder is operating under various operating conditions. Chesterton offers numerous, highly effective piston seal profiles to choose from, including u-cup, stacked and compression designs, depending upon the application requirements and operating conditions.

Compression Seals

Compression seals are typically designed with a higher initial pre-load than other designs which helps to improve sealing at lower pressures. These profiles are typically designed for use in single cavity groove hydraulic or pneumatic applications as a rod, piston, or static seals. They are able to seal pressure in both directions, and come in various types, such as cap seals, piston cups and various static seals and stacked v-rings.

Static Seals

The function of a static seal is to prevent fluid bypass between mating surfaces in which there is little or no relative motion when exposed to zero, low, or high pressures. There are various profiles used in industry, from O-rings to custom profiles, which can be used based upon equipment and operating conditions. Chesterton experts can help you choose the right material and profile to maximize performance.

Download our Capability Statement

Download

Our capability statement includes details about our expertise and insights on who we are, our goals and vision; together with our commitment towards customers like you. Discover what we can do for you, what we offer and the industries we serve.
